Zesilovač / držák Hi-Fi systém for BMW 1 Series E81 123d (2011)

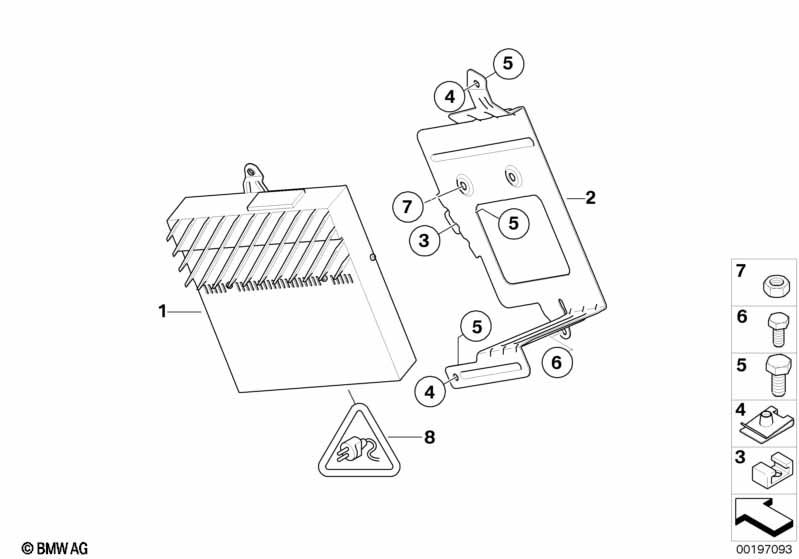

This Zesilovač / držák Hi-Fi systém technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Hi-Fi systém reproduktorů |
S676A=Ano |
|||||||||
| 01 | Zesilovač Hi-Fi systém | 1 | 65129143155 | Shop at ECS Tuning | ||||||
| 02 | Držák zesilovač Hi-Fi systém | 1 | 65126927696 | +core | Shop at ECS Tuning | |||||
| Pro vozidla s CD-měnič 6 disků a Hi-Fi systém reproduktorů |
S672A=Ano S676A=Ano |
|||||||||
| 02 | Držák zesilovač Top-Hi-Fi systém | 1 | 65126927697 | +core | Shop at ECS Tuning | |||||
| Pro vozidla s Hi-Fi systém reproduktorů |
S676A=Ano |
|||||||||
| 03 | Prestol klec | M5 | 1 | 07147143447 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Matice na plech | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M5X14 | 3 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub | M6X10 | 1 | 07119903842 | $0.45 | Shop at ECS Tuning | ||||
| 07 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Těleso zdířky šedé | 21 POL. | 1 | 61138364884 | $1.30 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS s kabelem | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt MQS s kabelem | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 2,5-4,0 MM | X | 61136913612 | $0.50 | Shop at ECS Tuning | ||||
| -- | Univerzální krytka nekódovaná | 42 POL. | 1 | 61138364810 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Těleso zdířky černé | 21 POL. | 1 | 61138364882 | $1.30 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
