Elektrické díly Airbag for BMW MINI Cabrio R52 Cooper (2002)

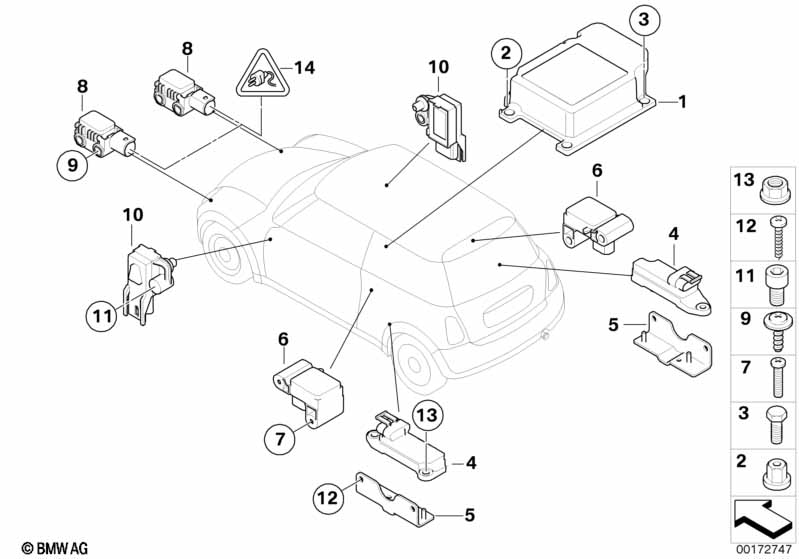

This Elektrické díly Airbag technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Řídicí jedn. airbag/boční airbag nekód. | 1 | 65779345360 | Shop at ECS Tuning | ||||||
| 02 | Blokovací ozubená matice | M6 ZNT | 3 | 07146982788 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M6X16 | 1 | 03/2009 | 07119905042 | $0.27 | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M6X16-8.8-ZNS3 | 1 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Nárazové čidlo boční airbag | 2 | 65779120296 | $269.84 | Shop at ECS Tuning | |||||
| 05 | Držák čidlo | 2 | 65776947821 | $5.13 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Šroub s čočkovitou hlavou | M6X16-SW | 4 | 07/2007 | 46627666039 | $0.60 | Shop at ECS Tuning | |||
| 12 | Isa-šroub | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Blokovací ozubená matice | M5 | 4 | 07149149279 | $0.56 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio R52 Cooper Elektrické díly Airbag?
- This technical diagram illustrates the Elektrické díly Airbag within the Audio, navigace, elektronické systémy group for the MINI Cabrio R52 Cooper produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Řídicí jedn. airbag/boční airbag nekód. (Part #65779345360).
- Which models use the hardware listed in this Elektrické díly Airbag?
- The hardware and components featured in the Elektrické díly Airbag are specific to the MINI Cabrio R52 Cooper produced during 2002. These technical specifications ensure that parts like the Řídicí jedn. airbag/boční airbag nekód. (65779345360) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elektrické díly Airbag assembly?
- Each item in the Elektrické díly Airbag corresponds to the numbered list below the illustration. For the MINI Cabrio R52 Cooper, you can identify the Řídicí jedn. airbag/boční airbag nekód. by locating its position on the schematic, which then links to the official BMW part number 65779345360 for the Audio, navigace, elektronické systémy section.
