Anténní kabel for BMW MINI Cabrio R52 Cooper (2002)

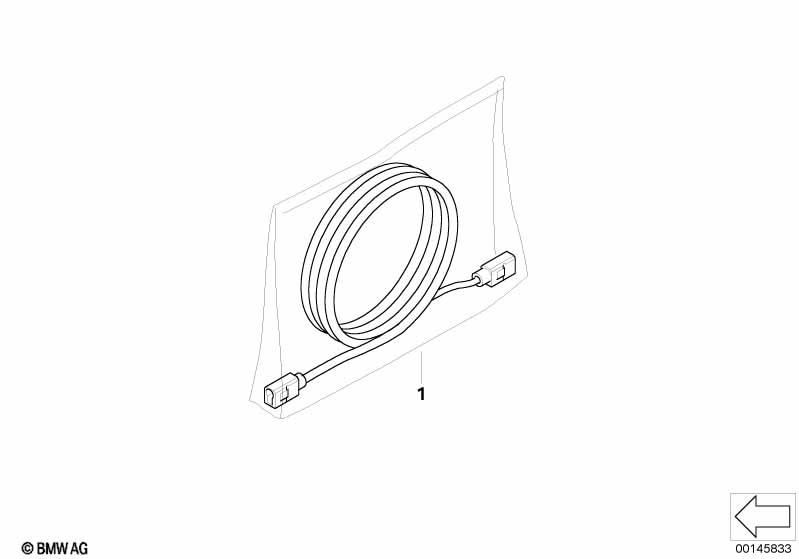

This Anténní kabel technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Navigační systém profesionální |
S609A=Ano |
|||||||||
| 01 | Anténní kabel GPS | L=4620MM | 1 | 61116966385 | $95.47 | Shop at ECS Tuning | ||||
| Pro vozidla s Příprava montáž telefonu univerzální |
S640A=Ano |
|||||||||
| 01 | Anténní kabel Telefon | X13363-X13322 | 1 | 61116966384 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Rádio BMW Reverse/MINI Wave nebo Rádio BMW Business/MINI Boost |
S656A=Ano S657A=Ano |
|||||||||
| 01 | Anténní kabel rádio | X13364-X807 | 1 | 61116970699 | $59.03 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
