IBOC-přijím.modul/IBOC-rozdělovač kanálů for BMW 6 Series E63 LCI 650i (2010)

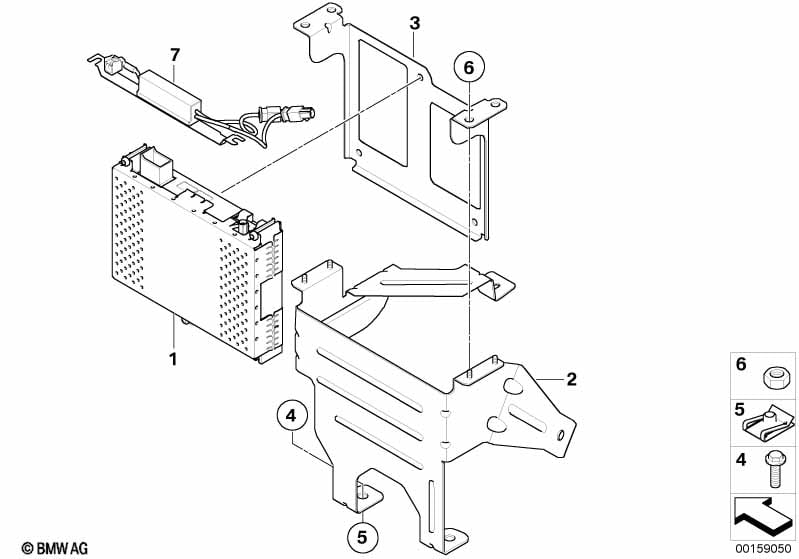

This IBOC-přijím.modul/IBOC-rozdělovač kanálů technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s High Definition rádio |
S653A=Ano |
|||||||||
| 02 | Držák satelitní rádio/navigace | 1 | 65159120731 | $93.47 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Držák DAB-tuner | 1 | 65126925467 | $5.70 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub | M5X14 | 7 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Matice na plech | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Matice | M5 | 4 | 07147120461 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
