IBOC-přijím.modul/IBOC-rozdělovač kanálů for BMW 3 Series E90 335xi (2008)

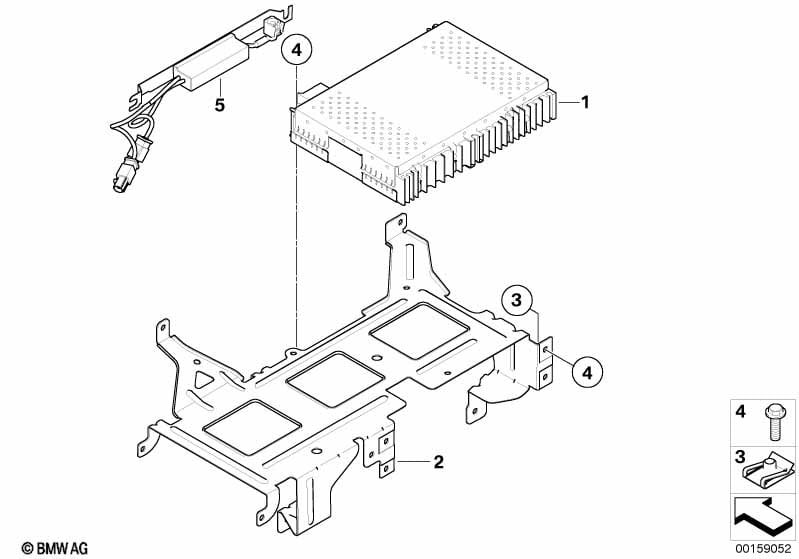

This IBOC-přijím.modul/IBOC-rozdělovač kanálů technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s High Definition rádio |
S653A=Ano |
|||||||||
| 01 | IBOC-tuner | 1 | 65129119363 | $905.31 | Shop at ECS Tuning | |||||
| 02 | Držák videomodul | 1 | 03/2007 | 65156945074 | $13.92 | Shop at ECS Tuning | ||||
| 03 | Matice na plech | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M5X14 | 7 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| Pro vozidla s Dopravní informace a High Definition rádio |
S6UHA=Ano S653A=Ano |
|||||||||
| 05 | Anténní výhybka IBOC | 1 | 03/2007 | 65209192725 | $82.67 | Shop at ECS Tuning | ||||
