Zesilovač/držák systém Harman Kardon for BMW MINI Paceman R61 Cooper

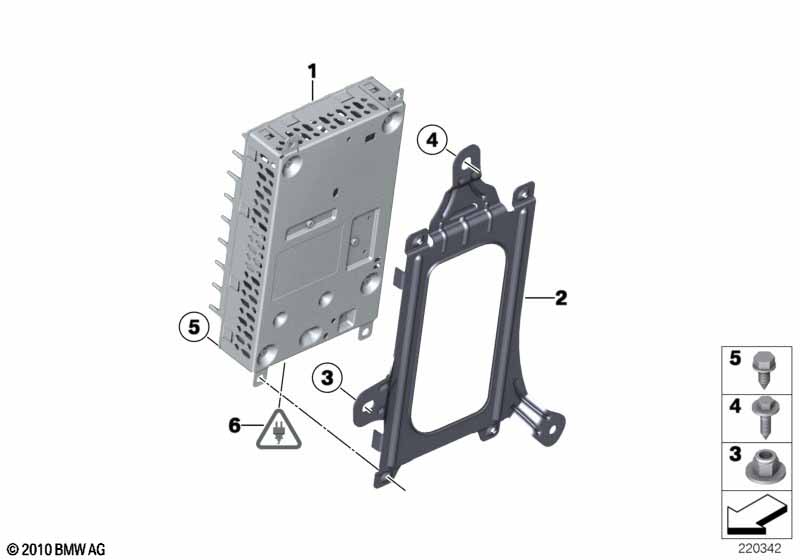

This Zesilovač/držák systém Harman Kardon technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Hi-Fi systém Harman Kardon |
S674A=Ano |
||||||||
| 01 | Zesilovač Hi-Fi systém Harman Kardon | 1 | 65129388960 | Shop at ECS Tuning | ||||||
| 02 | Držák zesilovač | 1 | 65129809773 | Shop at ECS Tuning | ||||||
| 03 | Šestihranná matice | 3 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 05 | Šroub na plech | ST4,8X9,5 | 4 | 07119907344 | Shop at ECS Tuning | |||||
| 06 | Těleso zdířky šedé | 21 POL. | 1 | 61138364884 | $1.30 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Univerzální krytka nekódovaná | 42 POL. | 1 | 61138364810 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 1,0- 2,5 MM² SN | X | 61138364838 | $0.62 | Shop at ECS Tuning | ||||
| -- | Těleso zdířky černé | 21 POL. | 1 | 61138364882 | $1.30 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Zesilovač/držák systém Harman Kardon?
- This technical diagram illustrates the Zesilovač/držák systém Harman Kardon within the Audio, navigace, elektronické systémy group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Zesilovač Hi-Fi systém Harman Kardon (Part #65129388960).
- Which models use the hardware listed in this Zesilovač/držák systém Harman Kardon?
- The hardware and components featured in the Zesilovač/držák systém Harman Kardon are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Zesilovač Hi-Fi systém Harman Kardon (65129388960) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zesilovač/držák systém Harman Kardon assembly?
- Each item in the Zesilovač/držák systém Harman Kardon corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Zesilovač Hi-Fi systém Harman Kardon by locating its position on the schematic, which then links to the official BMW part number 65129388960 for the Audio, navigace, elektronické systémy section.
