Anténní kabel for BMW MINI Paceman R61 Cooper

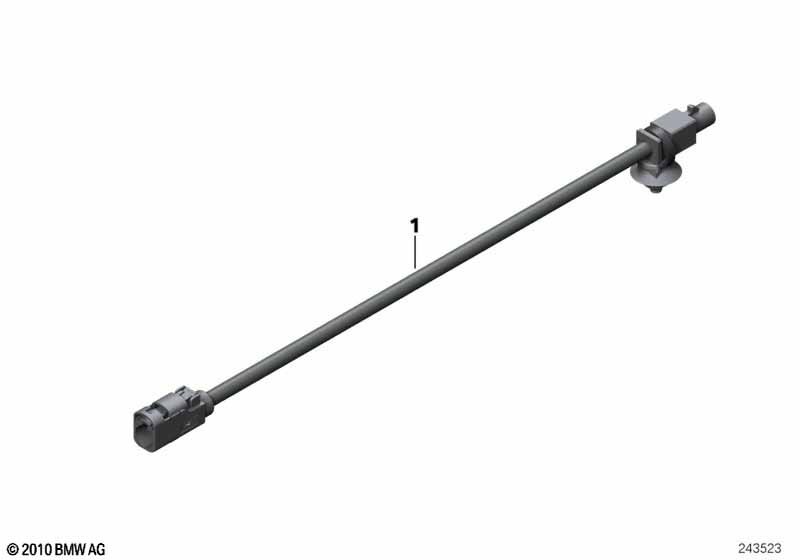

This Anténní kabel technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| X13387-X14065S | ||||||||||
| 01 | Anténní kabel DAB-Head Unit | L= 4085MM | 1 | 61119812550 | Shop at ECS Tuning | |||||
| X13344-X13816S | ||||||||||
| 01 | Anténní kabel výstup FM-Div | L= 3975MM | 1 | 61119812551 | Shop at ECS Tuning | |||||
| X13365-X16792 | ||||||||||
| 01 | Anténní kabel vstup FM-Div | L=1040MM | 1 | 61119812552 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Anténní kabel?
- This technical diagram illustrates the Anténní kabel within the Audio, navigace, elektronické systémy group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Anténní kabel DAB-Head Unit (Part #61119812550).
- Which models use the hardware listed in this Anténní kabel?
- The hardware and components featured in the Anténní kabel are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Anténní kabel DAB-Head Unit (61119812550) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Anténní kabel assembly?
- Each item in the Anténní kabel corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Anténní kabel DAB-Head Unit by locating its position on the schematic, which then links to the official BMW part number 61119812550 for the Audio, navigace, elektronické systémy section.
