Zesilovač / držák for BMW 7 Series G11 LCI 730i (2020)

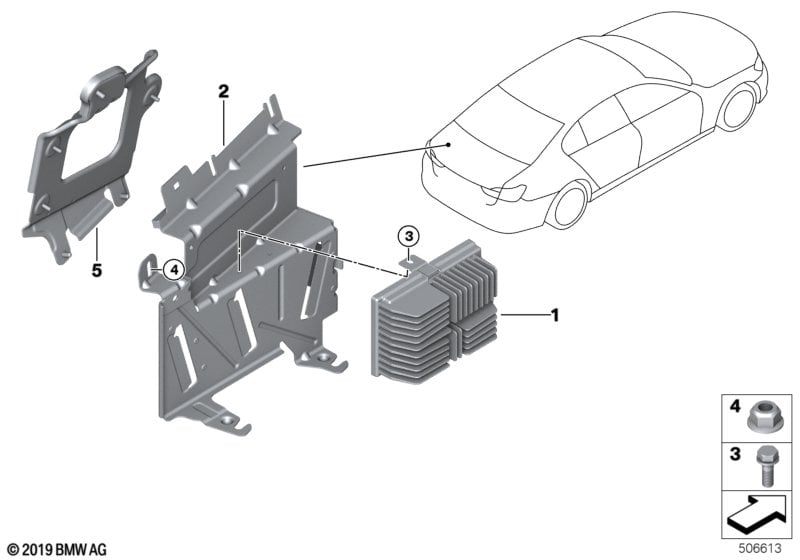

This Zesilovač / držák technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ano |
|||||||||
| 01 | Booster | ALEV4 | 1 | 11/2021 | 65125A3F6D4 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Booster | ALEV4 | 1 | 65125A52E25 | Shop at ECS Tuning | |||||
| Pro vozidla s Harman/Kardon Surround Sound System a Bowers & Wilkins High End Sound System |
S688A=Ano S6F1A=Ne |
|||||||||
| 01 | Booster | ALEV3 R | 1 | 07/2022 | 65125A38AB8 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Booster | ALEV3 R | 1 | 65125A5CA89 | Shop at ECS Tuning | |||||
| 02 | Držák zesilovač | 1 | 03/2019 | 65152622699 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub | M5X14 | 1 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M6-8-ZNS3 | 2 | 07119902751 | $0.56 | Shop at ECS Tuning | ||||
| 05 | Držák RAM | 1 | 03/2019 | 65158791010 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 730i Zesilovač / držák?
- This technical diagram illustrates the Zesilovač / držák within the Audio, navigace, elektronické systémy group for the 7 Series G11 LCI 730i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Booster (Part #65125A3F6D4).
- Which models use the hardware listed in this Zesilovač / držák?
- The hardware and components featured in the Zesilovač / držák are specific to the 7 Series G11 LCI 730i produced during 2020. These technical specifications ensure that parts like the Booster (65125A3F6D4) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zesilovač / držák assembly?
- Each item in the Zesilovač / držák corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 730i, you can identify the Booster by locating its position on the schematic, which then links to the official BMW part number 65125A3F6D4 for the Audio, navigace, elektronické systémy section.
