Jednotlivé díly Top-HiFi System zadní for BMW 6 Series G32 GT 630i (2020)

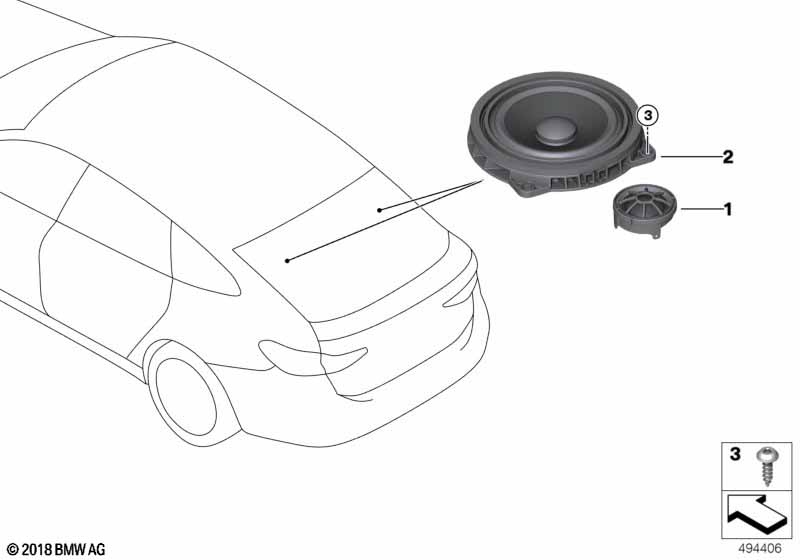

This Jednotlivé díly Top-HiFi System zadní technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Harman/Kardon Surround Sound System nebo Bowers & Wilkins High End Sound System |
S688A=Ano S6F1A=Ano |
||||||||
| Pro vozidla s Harman/Kardon Surround Sound System |
S688A=Ano |
|||||||||
| 01 | Vysokotónový reproduktor | 2 | 65139184794 | Shop at ECS Tuning | ||||||
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ano |
|||||||||
| 01 | Vysokotónový reproduktor | 2 | 65139279629 | Shop at ECS Tuning | ||||||
| Pro vozidla s Harman/Kardon Surround Sound System |
S688A=Ano |
|||||||||
| 02 | Středotónový reproduktor | ALEV 3 | 2 | 65139364956 | Shop at ECS Tuning | |||||
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ano |
|||||||||
| 02 | Středotónový reproduktor | HIGH END | 2 | 65139279635 | Shop at ECS Tuning | |||||
| Pro vozidla s Harman/Kardon Surround Sound System a Bowers & Wilkins High End Sound System |
S688A=Ano S6F1A=Ano |
|||||||||
| 03 | Šroub s čočkovitou hlavou | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| Pro vozidla s Harman/Kardon Surround Sound System a Bowers & Wilkins High End Sound System |
S688A=Ano S6F1A=Ne |
|||||||||
| 03 | Šroub s čočkovitou hlavou | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| Pro vozidla s Harman/Kardon Surround Sound System a Bowers & Wilkins High End Sound System |
S688A=Ne S6F1A=Ano |
|||||||||
| 03 | Šroub s čočkovitou hlavou | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630i Jednotlivé díly Top-HiFi System zadní?
- This technical diagram illustrates the Jednotlivé díly Top-HiFi System zadní within the Audio, navigace, elektronické systémy group for the 6 Series G32 GT 630i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Vysokotónový reproduktor (Part #65139184794).
- Which models use the hardware listed in this Jednotlivé díly Top-HiFi System zadní?
- The hardware and components featured in the Jednotlivé díly Top-HiFi System zadní are specific to the 6 Series G32 GT 630i produced during 2020. These technical specifications ensure that parts like the Vysokotónový reproduktor (65139184794) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Jednotlivé díly Top-HiFi System zadní assembly?
- Each item in the Jednotlivé díly Top-HiFi System zadní corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630i, you can identify the Vysokotónový reproduktor by locating its position on the schematic, which then links to the official BMW part number 65139184794 for the Audio, navigace, elektronické systémy section.
