Reproduktor přístrojová deska for BMW 7 Series G70 750eX (2025)

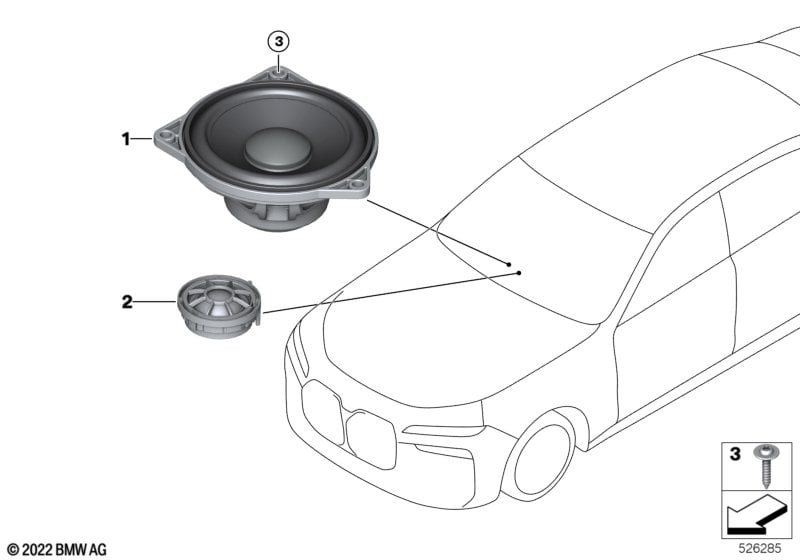

This Reproduktor přístrojová deska technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ano |
|||||||||
| 01 | Středový reproduktor | ALEV 4 | 1 | 65135A12119 | Shop at ECS Tuning | |||||
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ne |
|||||||||
| 01 | Středový reproduktor | ALEV3 | 1 | 65135A0F466 | Shop at ECS Tuning | |||||
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ano |
|||||||||
| 02 | Vysokotónový reproduktor | ALEV 4 | 1 | 65139350327 | Shop at ECS Tuning | |||||
| Pro vozidla s Bowers & Wilkins High End Sound System |
S6F1A=Ne |
|||||||||
| 02 | Výškový reproduktor | ALEV 3 | 1 | 65135A07EA6 | Shop at ECS Tuning | |||||
| 03 | Čočkový šroub s podložkou | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
