Reproduktor, sedadlo for BMW 7 Series G70 750eX (2025)

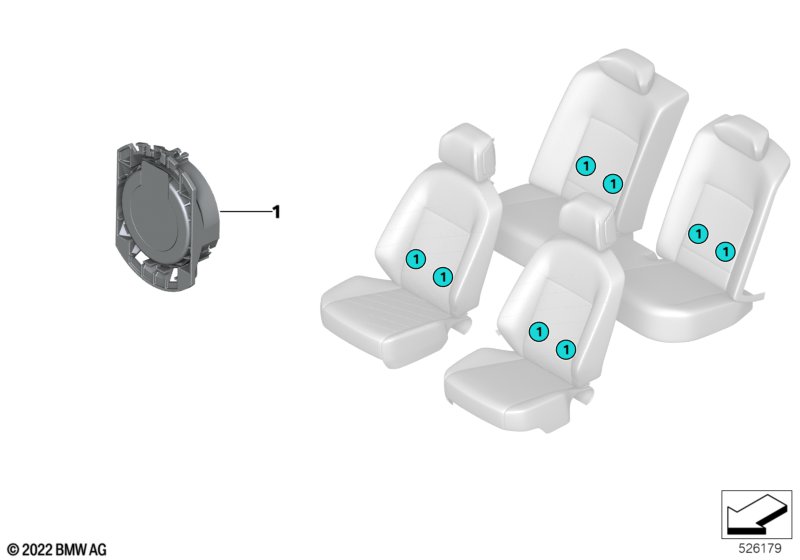

This Reproduktor, sedadlo technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s ZADNÍ MULTIFUNKČNÍ SEDADLA a Bowers & Wilkins High End Sound System Zadní |
S46AA=Ano S6F1A=Ano |
|||||||||
| 01 | Shaker | ALEV 4 | 4 | 65135A024F7 | Shop at ECS Tuning | |||||
| Pro vozidla s Klimatizovaná sedadla přední a Bowers & Wilkins High End Sound System Přední |
S453A=Ne S6F1A=Ano |
|||||||||
| 01 | Shaker | ALEV 4 | 4 | 65135A024F7 | Shop at ECS Tuning | |||||
| Pro vozidla s Executive Lounge Seating a Bowers & Wilkins High End Sound System Přední |
S4F4A=Ano S6F1A=Ano |
|||||||||
| 01 | Shaker | ALEV 4 | 4 | 65135A024F7 | Shop at ECS Tuning | |||||
| Pro vozidla s Klimatizovaná sedadla přední a Executive Lounge Seating a Bowers & Wilkins High End Sound System Přední |
S453A=Ano S4F4A=Ne S6F1A=Ano |
|||||||||
| 01 | Shaker | ALEV 4 | 4 | 65135A024F7 | Shop at ECS Tuning | |||||
