Multifunkční displej for BMW 7 Series G70 740i (2025)

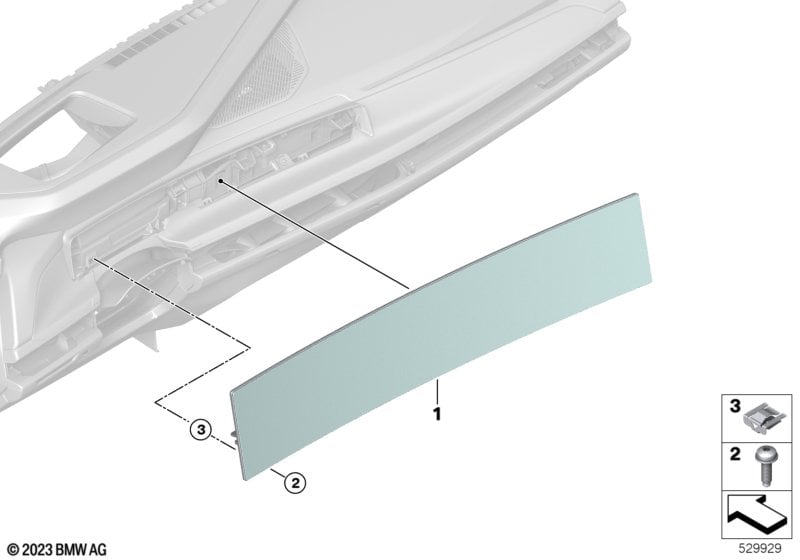

This Multifunkční displej technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Driving Assistant Professional |
S5AUA=Ano |
|||||||||
| 01 | S multifunkčním displejem | LHD | 1 | 65505A8F9D0 | Shop at ECS Tuning | |||||
| Pro vozidla s Driving Assistant Professional a Asistent jízdy na dálnicích |
S5AUA=Ne S5AXA=Ne |
|||||||||
| 01 | S multifunkčním displejem | LHD | 1 | 65505A8F9C8 | Shop at ECS Tuning | |||||
| 02 | Šroub s čočkovitou hlavou | 4 | 07147240308 | Shop at ECS Tuning | ||||||
| 03 | Pružná svorka | 4 | 07149236757 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Multifunkční displej?
- This technical diagram illustrates the Multifunkční displej within the Audio, navigace, elektronické systémy group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the S multifunkčním displejem (Part #65505A8F9D0).
- Which models use the hardware listed in this Multifunkční displej?
- The hardware and components featured in the Multifunkční displej are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the S multifunkčním displejem (65505A8F9D0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Multifunkční displej assembly?
- Each item in the Multifunkční displej corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the S multifunkčním displejem by locating its position on the schematic, which then links to the official BMW part number 65505A8F9D0 for the Audio, navigace, elektronické systémy section.
