Regulace rychlosti for BMW 6 Series E24 633CSi

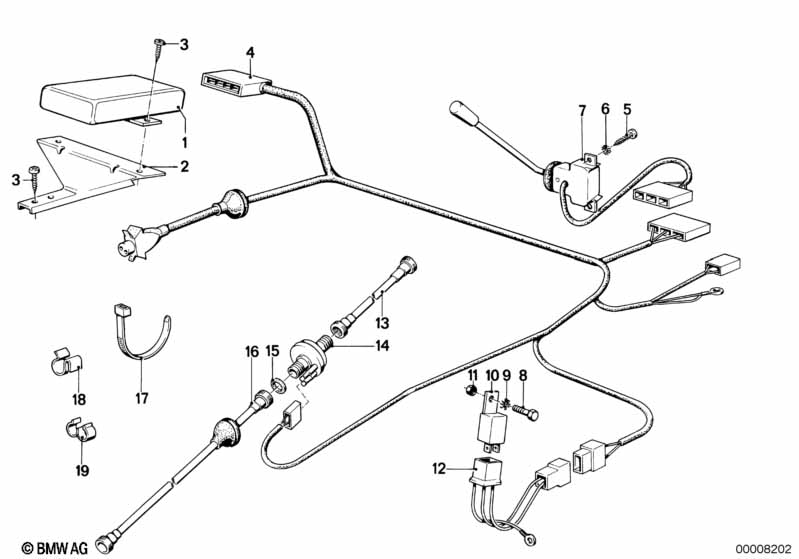

This Regulace rychlosti technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.

Regulace rychlosti
Č. Popis Doplnění Poč.  Od   Do  Číslo dílu Cena Notes
01 Řídicí jednotka 1 09/1979 09/1982 65711362290 $277.66 UKONČENO Shop at ECS Tuning
01 Řídicí jednotka 1 09/1979 09/1982 65711362290 $277.66 UKONČENO Shop at ECS Tuning
02 Uchycení 1 09/1979 09/1982 65711362488 UKONČENO Shop at ECS Tuning
02 Uchycení 1 09/1979 09/1982 65711362488 UKONČENO Shop at ECS Tuning
03 Samořezný šroub s čočkovou hlavou ST4,8X19-Z1 2 09/1979 09/1982 07119906765 $0.56 Shop at ECS Tuning
03 Samořezný šroub s čočkovou hlavou ST4,8X19-Z1 2 09/1979 09/1982 07119906765 $0.56 Shop at ECS Tuning
04 Kabelová sada regulace rychlosti 1 09/1979 09/1982 61121363997 $97.93 UKONČENO Shop at ECS Tuning
04 Kabelová sada regulace rychlosti 1 09/1979 09/1982 61121363997 $97.93 UKONČENO Shop at ECS Tuning
05 Šroub s čočkovitou hlavou M5X12-ZN 1 09/1979 09/1982 07119907627 $0.43 Shop at ECS Tuning
05 Šroub s čočkovitou hlavou M5X12-ZN 1 09/1979 09/1982 07119907627 $0.43 Shop at ECS Tuning
06 Pružná podložka B5 5 09/1979 09/1982 07119932098 $0.38 Shop at ECS Tuning
06 Pružná podložka B5 5 09/1979 09/1982 07119932098 $0.38 Shop at ECS Tuning
07 Spínač (ENGLISH) 1 09/1979 09/1982 61311363560 $58.31 UKONČENO Shop at ECS Tuning
07 Spínač (ENGLISH) 1 09/1979 09/1982 61311363560 $58.31 UKONČENO Shop at ECS Tuning
08 Šestihranný šroub M6X10-8.8-ZNS3 1 09/1979 09/1982 07119904633 $0.20 Shop at ECS Tuning
08 Šestihranný šroub M6X10-8.8-ZNS3 1 09/1979 09/1982 07119904633 $0.20 Shop at ECS Tuning
09 Ozubená podložka A6,4 1 09/1979 09/1982 07119936133 $0.38 Shop at ECS Tuning
09 Ozubená podložka A6,4 1 09/1979 09/1982 07119936133 $0.38 Shop at ECS Tuning
10 Adaptér 1 09/1979 09/1982 65711364039 UKONČENO Shop at ECS Tuning
10 Adaptér 1 09/1979 09/1982 65711364039 UKONČENO Shop at ECS Tuning
11 Šestihranná matice M6-8-ZNNIV SI 1 09/1979 09/1982 07119905543 $0.38 Shop at ECS Tuning
11 Šestihranná matice M6-8-ZNNIV SI 1 09/1979 09/1982 07119905543 $0.38 Shop at ECS Tuning
12 Sada kabelů 1 09/1979 09/1982 61121364048 UKONČENO Shop at ECS Tuning
12 Sada kabelů 1 09/1979 09/1982 61121364048 UKONČENO Shop at ECS Tuning
13 Hřídel tachometru horní díl 1 09/1979 09/1982 62121364080 $25.39 UKONČENO Shop at ECS Tuning
13 Hřídel tachometru horní díl 1 09/1979 09/1982 62121364080 $25.39 UKONČENO Shop at ECS Tuning
14 Spínač 1 09/1979 09/1982 65711363257 $111.60 UKONČENO Shop at ECS Tuning
14 Spínač 1 09/1979 09/1982 65711363257 $111.60 UKONČENO Shop at ECS Tuning
15 Plstěný kroužek 1 09/1979 09/1982 62121354210 $2.00 Shop at ECS Tuning
15 Plstěný kroužek 1 09/1979 09/1982 62121354210 $2.00 Shop at ECS Tuning
16 Hřídel tachometru mezikus 1 09/1979 09/1982 62121368176 $12.11 UKONČENO Shop at ECS Tuning
16 Hřídel tachometru mezikus 1 09/1979 09/1982 62121368176 $12.11 UKONČENO Shop at ECS Tuning
17 Kabelová spojka L=292MM/B=4,8MM 6 09/1979 09/1982 61131377134 $0.77 Shop at ECS Tuning
17 Kabelová spojka L=292MM/B=4,8MM 6 09/1979 09/1982 61131377134 $0.77 Shop at ECS Tuning
18 Svorka 1 09/1979 09/1982 07147202015 Shop at ECS Tuning
18 Svorka 1 09/1979 09/1982 07147202015 Shop at ECS Tuning
19 Kabelová svorka 1 09/1979 09/1982 61131365412 $0.50 Shop at ECS Tuning
19 Kabelová svorka 1 09/1979 09/1982 61131365412 $0.50 Shop at ECS Tuning
Notes
  • Ukončeno = Díl se již nevyrábí.
