Čidlo adaptivní regulace rychlosti for BMW 7 Series F02 740Li

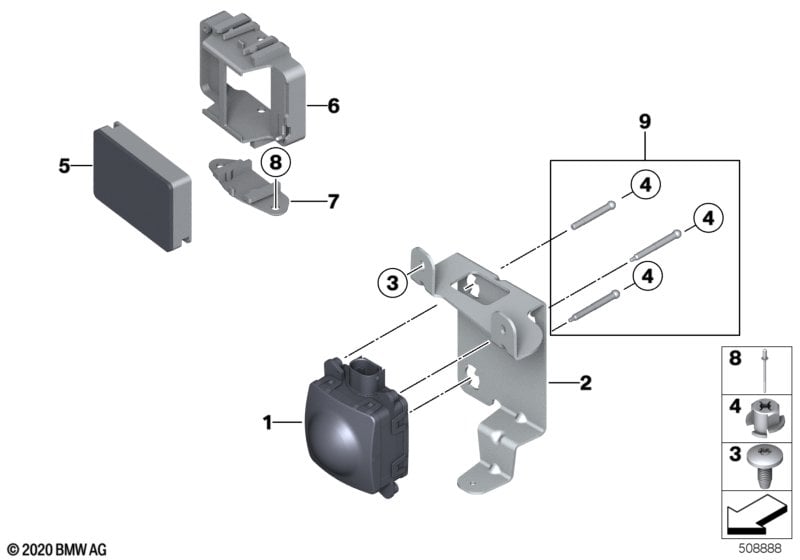

This Čidlo adaptivní regulace rychlosti technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Čidlo adaptivní regulace rychlosti 2 | 1 | 09/2010 | 66316790171 | $3067.27 | Shop at ECS Tuning | ||||
| 02 | Držák adaptivní tempomat 2 | 1 | 09/2010 | 66316782656 | $10.85 | Shop at ECS Tuning | ||||
| 03 | Šroub s čočkovitou hlavou | M5X10-ZNNID SW | 3 | 09/2010 | 07146777838 | $0.36 | Shop at ECS Tuning | |||
| 04 | Aretační pomůcka | 1 | 09/2010 | 66316762520 | $1.90 | Shop at ECS Tuning | ||||
| 05 | SRR SENSOR | 2 | 09/2010 | 66316790877 | $545.42 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Držák adaptivní tempomat 2 | 2 | 09/2010 | 66316782689 | $4.25 | Shop at ECS Tuning | ||||
| 07 | Adaptér | 2 | 09/2010 | 66316782690 | $1.82 | Shop at ECS Tuning | ||||
| 08 | Slepý nýt | D = 4MM | 4 | 09/2010 | 66316777308 | $0.33 | Shop at ECS Tuning | |||
| 09 | Opravná sada | 1 | 09/2010 | 66316786711 | $47.25 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
