Snímač čelního radaru pro vzdálené pásmo for BMW 4 Series G82 M4 Coupé M4 (2024)

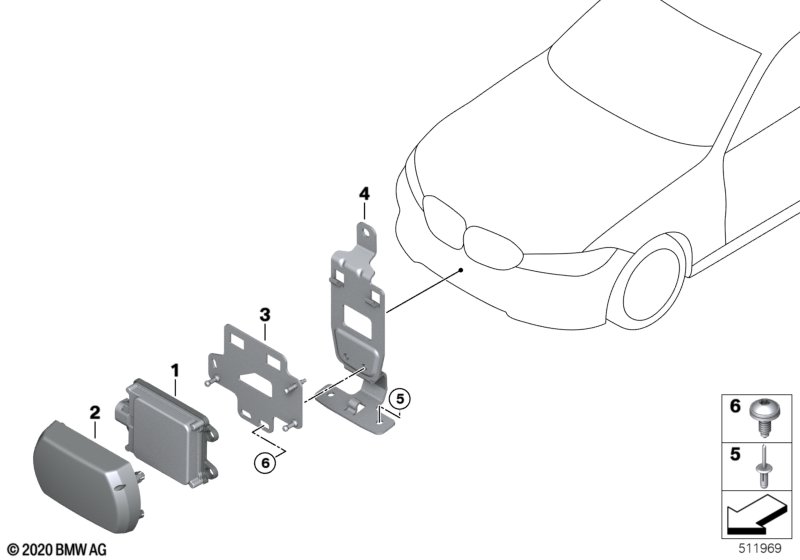

This Snímač čelního radaru pro vzdálené pásmo technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Driving Assistant Professional |
S5AUA=Ano |
||||||||
| 01 | Snímač čelního radaru pro vzdálené pásmo | FRR-02 | 1 | 66315A81716 | Shop at ECS Tuning | |||||
| 02 | Radom | 1 | 66316877219 | Shop at ECS Tuning | ||||||
| 03 | Držák snímač čelního radaru | 1 | 66316883865 | Shop at ECS Tuning | ||||||
| 04 | Pomocný držák | 1 | 66318099608 | Shop at ECS Tuning | ||||||
| 05 | Slepý nýt | 3 | 07147234212 | Shop at ECS Tuning | ||||||
| 06 | Kombinovaný šroub s čočkovou hlavou | M6X16-8.8-ZNNI | 2 | 07146999225 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G82 M4 Coupé M4 Snímač čelního radaru pro vzdálené pásmo?
- This technical diagram illustrates the Snímač čelního radaru pro vzdálené pásmo within the Distanční systémy, regulace rychlosti group for the 4 Series G82 M4 Coupé M4 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Snímač čelního radaru pro vzdálené pásmo (Part #66315A81716).
- Which models use the hardware listed in this Snímač čelního radaru pro vzdálené pásmo?
- The hardware and components featured in the Snímač čelního radaru pro vzdálené pásmo are specific to the 4 Series G82 M4 Coupé M4 produced during 2024. These technical specifications ensure that parts like the Snímač čelního radaru pro vzdálené pásmo (66315A81716) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Snímač čelního radaru pro vzdálené pásmo assembly?
- Each item in the Snímač čelního radaru pro vzdálené pásmo corresponds to the numbered list below the illustration. For the 4 Series G82 M4 Coupé M4, you can identify the Snímač čelního radaru pro vzdálené pásmo by locating its position on the schematic, which then links to the official BMW part number 66315A81716 for the Distanční systémy, regulace rychlosti section.
