Palubní nářadí/skříň na nářadí for BMW 3 Series E36 318ti (1999)

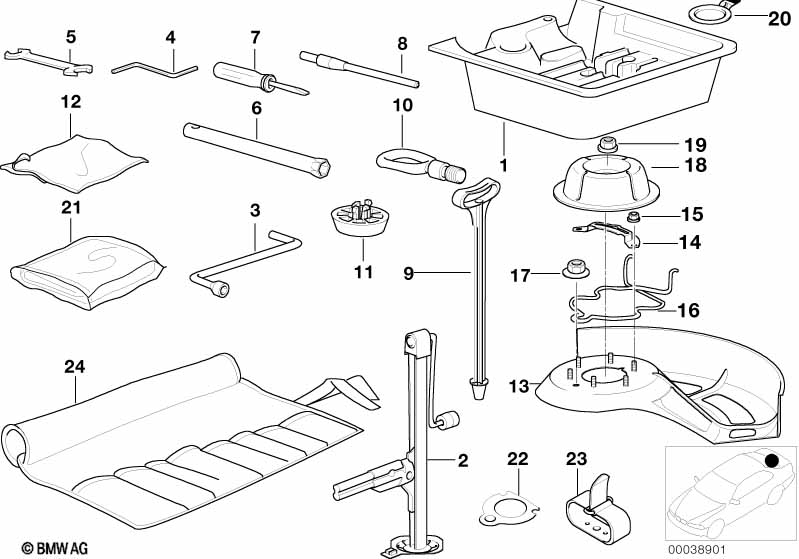

This Palubní nářadí/skříň na nářadí technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák palubní nářadí | 1 | 71121182662 | $18.85 | Shop at ECS Tuning | |||||
| 02 | Zvedák vozu | 1 | 71121181801 | $74.57 | Shop at ECS Tuning | |||||
| 03 | Klika | 1 | 71121179953 | $14.56 | Shop at ECS Tuning | |||||
| 04 | Nouzové ovl. elekt. okno/posuvná střecha | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 05 | Oboustranný klíč | 10-13 | 1 | 71111182747 | $5.40 | Shop at ECS Tuning | ||||
| 06 | Klíč na zapalovací svíčky | SW16 | 1 | 71111180680 | $18.50 | Shop at ECS Tuning | ||||
| 07 | Utahovák | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 08 | Kolík | 1 | 71111093774 | $4.44 | Shop at ECS Tuning | |||||
| 09 | Zvedací rukojeť | 1 | 51718165737 | $6.73 | Shop at ECS Tuning | |||||
| 10 | Vlečné oko | 1 | 72158119188 | $23.87 | Shop at ECS Tuning | |||||
| 11 | Držák zvedací plošina | 4 | 51711960752 | $13.42 | Shop at ECS Tuning | |||||
| 12 | Lešticí tkanina | 1 | 71111115810 | $2.29 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Držák kolo nouzového dojetí | 1 | 51718146610 | $57.78 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Úhelník pro pružnou sponu | 1 | 51718146547 | $0.87 | Shop at ECS Tuning | |||||
| 15 | Plastová matice čep s hrubým závitem | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Pružná spona | 1 | 51718203981 | $8.45 | Shop at ECS Tuning | |||||
| 17 | Tlačítko | D=30MM;H=13MM | 1 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 18 | Kryt | 1 | 51718146616 | $7.50 | Shop at ECS Tuning | |||||
| 19 | Šestihranná matice | AM10-10-ZNS3 | 1 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 20 | Uzavírací víko | 1 | 51718185177 | $0.54 | Shop at ECS Tuning | |||||
| 21 | Ochranný obal na pneumatiky | 1 | 71121182667 | $1.75 | Shop at ECS Tuning | |||||
| 22 | Fólie | 1 | 41128195810 | $6.37 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Palubní nářadí/skříň na nářadí?
- This technical diagram illustrates the Palubní nářadí/skříň na nářadí within the Pevná výstroj group for the 3 Series E36 318ti produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Držák palubní nářadí (Part #71121182662).
- Which models use the hardware listed in this Palubní nářadí/skříň na nářadí?
- The hardware and components featured in the Palubní nářadí/skříň na nářadí are specific to the 3 Series E36 318ti produced during 1999. These technical specifications ensure that parts like the Držák palubní nářadí (71121182662) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Palubní nářadí/skříň na nářadí assembly?
- Each item in the Palubní nářadí/skříň na nářadí corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Držák palubní nářadí by locating its position on the schematic, which then links to the official BMW part number 71121182662 for the Pevná výstroj section.
