Palubní nářadí/skříň na nářadí for BMW 5 Series E34 525i (1996)

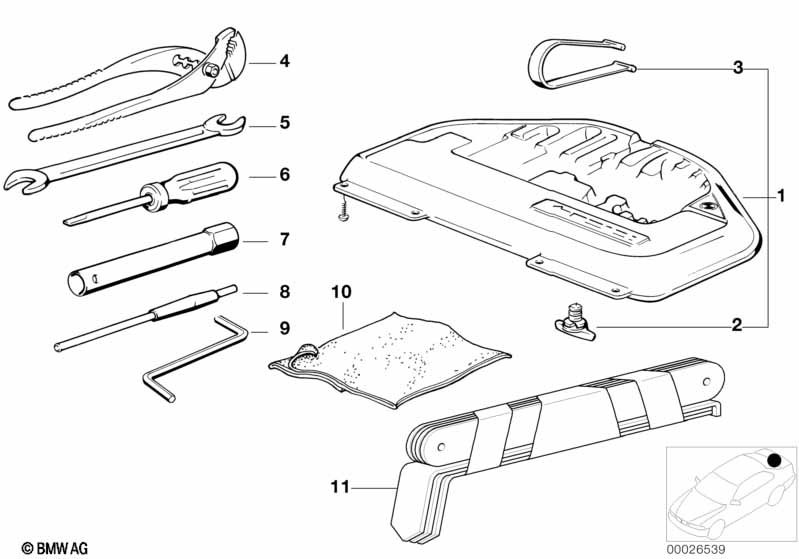

This Palubní nářadí/skříň na nářadí technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pos.: 1 viz Hlavní skupina 51 Výplň zadní výklopné dveře |
|||||||||
| 02 | Otočný uzávěr | SCHWARZ | 2 | 51478120281 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Přídržný pásek skříň na nářadí | 2 | 51498120980 | $0.92 | Shop at ECS Tuning | |||||
| 04 | Spona vodního čerpadla | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 05 | Dvojitý vidlicový klíč | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 05 | Oboustranný klíč | 12-13 | 1 | 71111126148 | $5.90 | Shop at ECS Tuning | ||||
| 05 | Oboustranný klíč | 17-19 | 1 | 71111129076 | $10.14 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Utahovák | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 07 | Klíč na zapalovací svíčky | SW16 | 1 | 71111181460 | $18.50 | Shop at ECS Tuning | ||||
| 07 | Nástrčný klíč | SW10 | 1 | 06/1991 | 71111181418 | $8.53 | Shop at ECS Tuning | |||
| 08 | Kolík | 1 | 71111093774 | $4.44 | Shop at ECS Tuning | |||||
| 09 | Nouzové ovlád. elektr. posuvná střecha | 1 | 54008149665 | $10.14 | Shop at ECS Tuning | |||||
| 10 | Lešticí tkanina | 1 | 71111115810 | $2.29 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Výstražný trojúhelník s obalem | 1 | 71601092427 | $19.53 | UKONČENO, +core | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Palubní nářadí/skříň na nářadí?
- This technical diagram illustrates the Palubní nářadí/skříň na nářadí within the Pevná výstroj group for the 5 Series E34 525i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Otočný uzávěr (Part #51478120281).
- Which models use the hardware listed in this Palubní nářadí/skříň na nářadí?
- The hardware and components featured in the Palubní nářadí/skříň na nářadí are specific to the 5 Series E34 525i produced during 1996. These technical specifications ensure that parts like the Otočný uzávěr (51478120281) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Palubní nářadí/skříň na nářadí assembly?
- Each item in the Palubní nářadí/skříň na nářadí corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Otočný uzávěr by locating its position on the schematic, which then links to the official BMW part number 51478120281 for the Pevná výstroj section.
