Mobility System for BMW 7 Series G70 740i (2025)

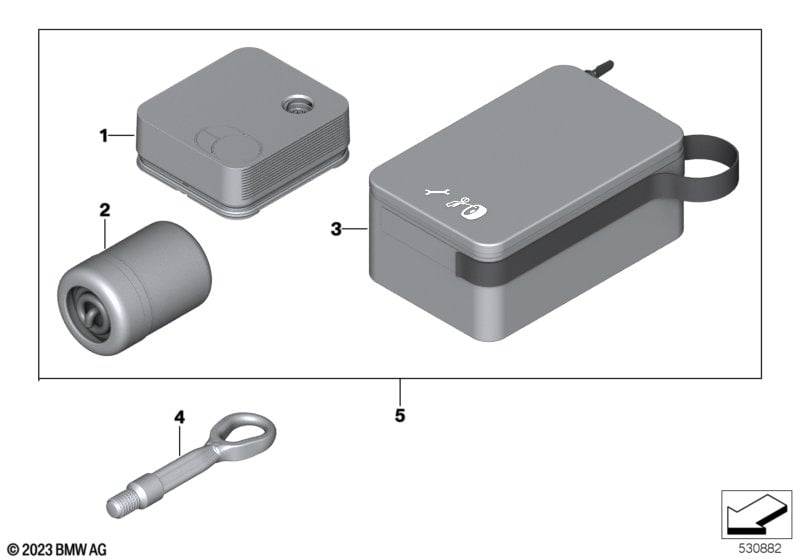

This Mobility System technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Sada na opravu pneumatiky |
S2VCA=Ano |
|||||||||
| 01 | Kompresor | 1 | 71106898012 | Shop at ECS Tuning | ||||||
| 02 | Lahev s těsnicím prostře. na pneumatiky | 450ML | 1 | 71105A9BCA3 | Shop at ECS Tuning | |||||
| 03 | Taška BMW Mobility System | 1 | 71106898016 | Shop at ECS Tuning | ||||||
| 04 | Vlečné oko | 1 | 72157953897 | Shop at ECS Tuning | ||||||
| Pro vozidla s Sada na opravu pneumatiky |
S2VCA=Ano |
|||||||||
| 05 | Sada systému Mobility | 450ML | 1 | 71106898020 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Mobility System?
- This technical diagram illustrates the Mobility System within the Pevná výstroj group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Kompresor (Part #71106898012).
- Which models use the hardware listed in this Mobility System?
- The hardware and components featured in the Mobility System are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the Kompresor (71106898012) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mobility System assembly?
- Each item in the Mobility System corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the Kompresor by locating its position on the schematic, which then links to the official BMW part number 71106898012 for the Pevná výstroj section.
