Airbag for BMW MINI R50 Cooper (2000)

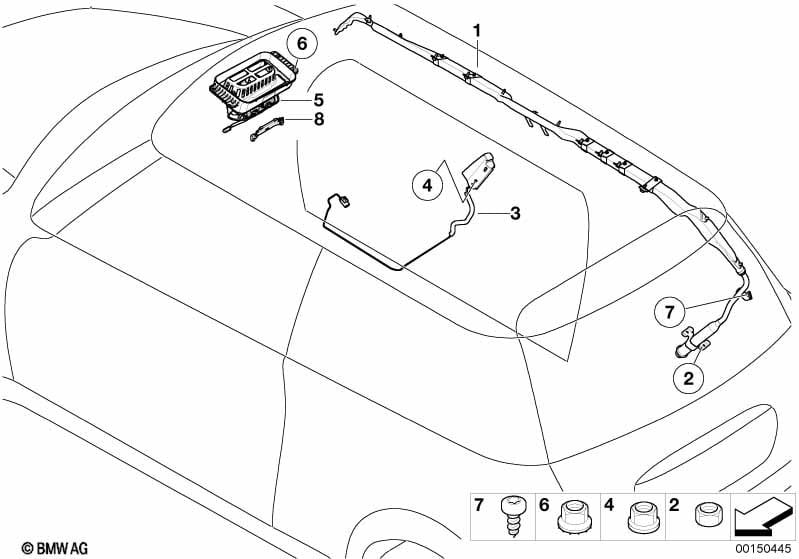

This Airbag technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Hlavový airbag |
S262A=Ano |
|||||||||
| 01 | Hlavový airbag pravý | 1 | 72121509602 | $308.59 | Shop at ECS Tuning | |||||
| 01 | Hlavový airbag levý | 1 | 72121509603 | $308.59 | Shop at ECS Tuning | |||||
| 02 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 4 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Boční airbag sedadlo přední pravý | 1 | 72121484283 | $191.48 | Shop at ECS Tuning | |||||
| 03 | Boční airbag sedadlo přední levý | 1 | 72121484284 | $191.48 | Shop at ECS Tuning | |||||
| 04 | Šestihranná matice s přírubou | M6 | 2 | 07130736431 | $0.87 | Shop at ECS Tuning | ||||
| 05 | Jednotka airbagu, str. spolujezdce | 1 | 07/2004 | 72127056934 | $618.43 | Shop at ECS Tuning | ||||
| 06 | Šroub Torx | 4 | 07/2004 | 07131143390 | $1.16 | Shop at ECS Tuning | ||||
| 06 | Blokovací ozubená matice | M6 ZNT | 4 | 07/2004 | 07146982788 | $0.20 | Shop at ECS Tuning | |||
| 07 | Šroub s čočkovitou hlavou | M6X14 | 2 | 72127043197 | $0.48 | Shop at ECS Tuning | ||||
| 08 | Distanční držák | 1 | 72126982979 | $8.32 | Shop at ECS Tuning | |||||
