Airbag for BMW MINI Paceman R61 Cooper

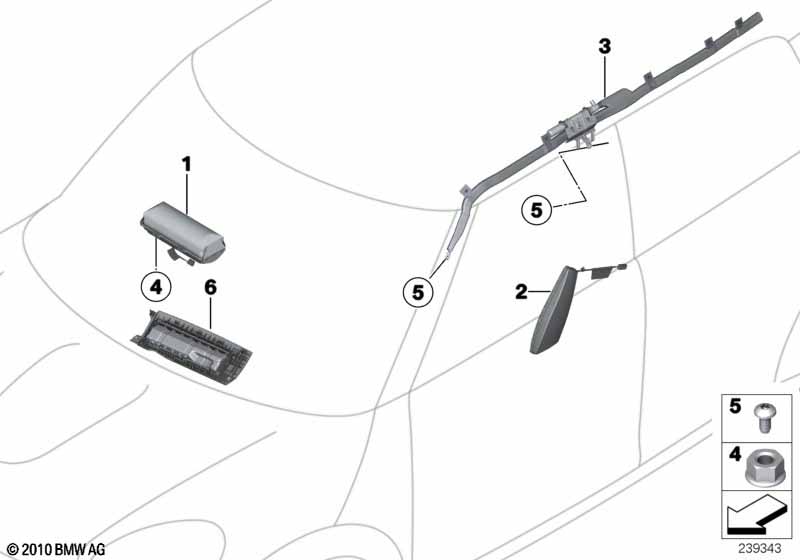

This Airbag technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag spolujezdec | 1 | 51459802755 | Shop at ECS Tuning | ||||||
| 02 | Boční airbag sedadlo přední levý | CARBON BLACK | 1 | 72129810881 | Shop at ECS Tuning | |||||
| 02 | Boční airbag sedadlo přední pravý | CARBON BLACK | 1 | 72129810882 | Shop at ECS Tuning | |||||
| 03 | Hlavový airbag levý | 1 | 72129809023 | Shop at ECS Tuning | ||||||
| 03 | Hlavový airbag pravý | 1 | 72129809024 | Shop at ECS Tuning | ||||||
| 04 | Šestihranná matice samojisticí | M6 | 4 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Šroub s čočk. hlavou se zkrutnou pojist. | ISA M6X12 | 8 | 51217061955 | $0.69 | Shop at ECS Tuning | ||||
| 06 | Modul airbagu ochr. kolen str. spolujez. | 1 | 51459803415 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Airbag?
- This technical diagram illustrates the Airbag within the Příslušenství a zádržné systémy group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Airbag spolujezdec (Part #51459802755).
- Which models use the hardware listed in this Airbag?
- The hardware and components featured in the Airbag are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Airbag spolujezdec (51459802755) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag assembly?
- Each item in the Airbag corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Airbag spolujezdec by locating its position on the schematic, which then links to the official BMW part number 51459802755 for the Příslušenství a zádržné systémy section.
