Jedn.díly autotelefon zavazadl. prostor for BMW 7 Series E38 750iLS (2001)

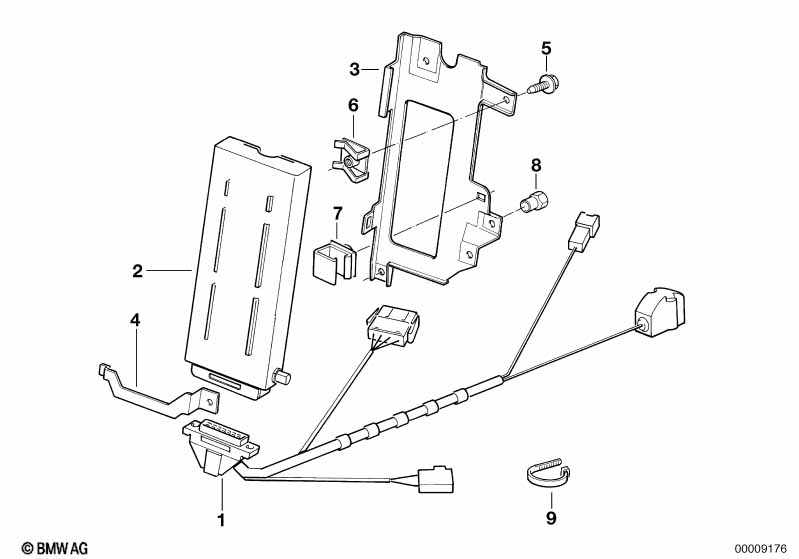

This Jedn.díly autotelefon zavazadl. prostor technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spojovací kabel Autotelefon | 1 | 09/1998 | 61128383377 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Hlasový vstup |
S620A=Ano |
|||||||||
| 01 | Spojovací kabel Autotelefon | 1 | 09/1998 | 61128383380 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Vysílací a přijímací zařízení | MOTOROLA V PLUS | 1 | 03/1997 | 84116911042 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Držák vysílače a přijímače | 1 | 84318362432 | $5.06 | Shop at ECS Tuning | |||||
| 04 | Upevňovací třmen vysílač-přijímač | 1 | 84318362433 | $2.51 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M5X14 | 2 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Matice na plech | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 07 | Držák zástrčka bílý | 1 | 61138365550 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Matice slepého nýtu plochá hlava | M5 | 2 | 61136954561 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Kabelová spojka | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
