Jednotlivé díly SA 633 zavazadl. prostor for BMW 1 Series E87 LCI 118i (2011)

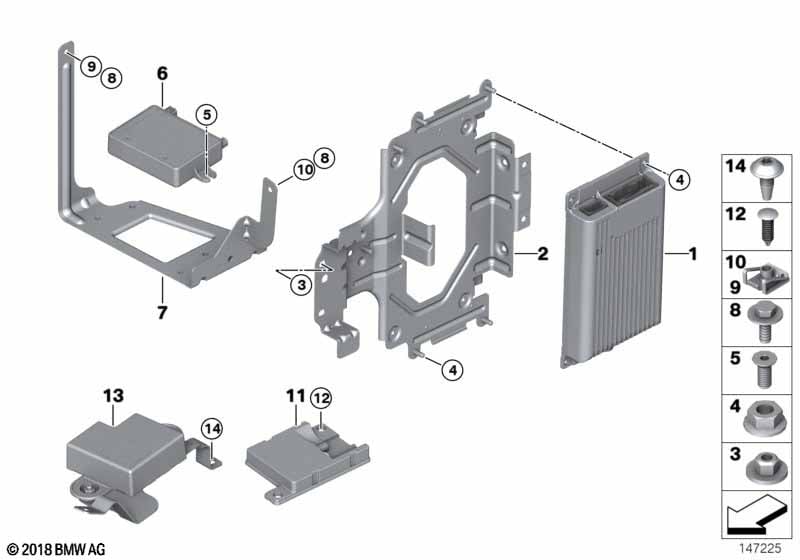

This Jednotlivé díly SA 633 zavazadl. prostor technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Řízení Combox |
S6VCA=Ne |
||||||||
| 02 | Držák řídicí jednotka telematiky / SES | 1 | 65159135687 | $16.50 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice s přírubou | M6 | 2 | 41248147832 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M5 | 6 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Šroub s vnitřním šestihranem | M4X8 | 4 | 33202487162 | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Prestol klec | M5 | 1 | 07147143447 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Matice na plech | M5 | 1 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 11 | Anténa | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 12 | Úchytka černá | 2 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 13 | Záložní anténa | 1 | 65209154263 | $37.01 | Shop at ECS Tuning | |||||
| 14 | Šestihranný šroub, plech | ST6,3X16-R-U2-Z | 1 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
