Jednotlivé díly tandem autotelefon SA6NA for BMW 7 Series E66 750Li (2008)

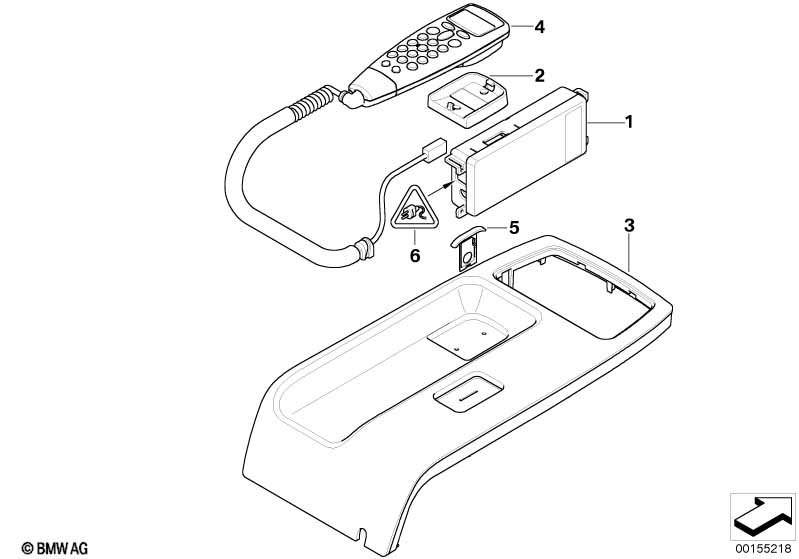

This Jednotlivé díly tandem autotelefon SA6NA technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Autotelefon na zadním sedadle |
S6NAA=Ano |
||||||||
| 01 | Řídicí jednotka zadní telefon | 1 | 09/2005 | 84108035362 | Shop at ECS Tuning | |||||
| 02 | Držák obslužné sluchátko | 1 | 09/2005 | 84107906928 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Vložka konzola | 1 | 09/2005 | 84107906924 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Obslužné sluchátko vzadu | 1 | 09/2005 | 84107906926 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Držák SIM karty | 1 | 09/2005 | 84116928068 | Shop at ECS Tuning | |||||
| 06 | univerzální zdířková skříň nekódovaná | 10 POL. | 1 | 09/2005 | 61136909008 | $1.82 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS s kabelem | 0,5-0,75 MM² AG | X | 09/2005 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,35-0,5 MM² AG | X | 09/2005 | 61130056961 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
