M Performance Parts for BMW 5 Series F90 M5 M5

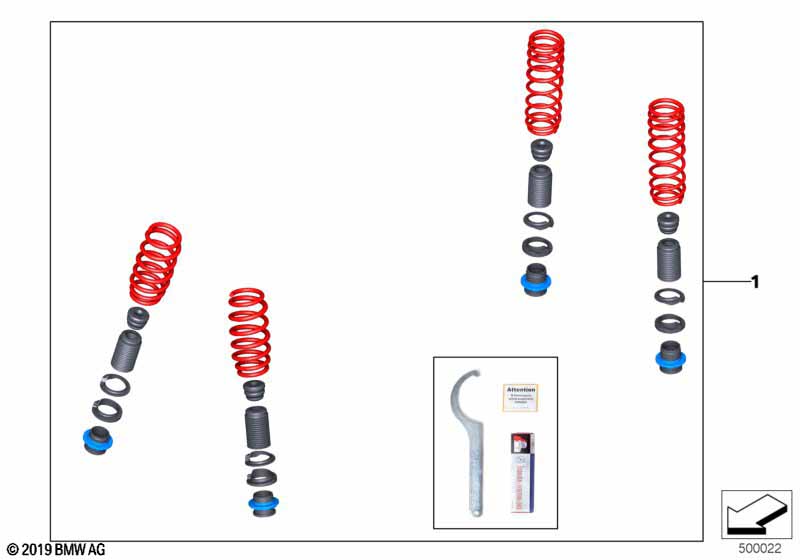

This M Performance Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F90 M5 M5. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on race-track and not for use on public roads according to the relevant retrofitting regulation. Für Fahrzeuge mit Länderausführung Korea |
L802A=Nein |
||||||||
| Hohlraumschutzspray 0 428 190 wird für die Montage benötigt |
||||||||||
| 01 | Nachrüstsatz Sportfahrwerk | M PERFORMANCE | 1 | 33502456208 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Sechskantmutter mit Flansch | M12X1,5-10-ZNS3 | 2 | 37106789678 | $0.75 | Shop at ECS Tuning | ||||
| -- | Mutter selbstsichernd | M14X1,5-05 ZNS3 | 4 | 34339806226 | Shop at ECS Tuning | |||||
| -- | Sechskantschraube | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| -- | Bundmutter selbstsichernd | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
| -- | Schraube selbstschneidend | M8X26-10.9 ZNS3 | 6 | 31307856969 | Shop at ECS Tuning | |||||
| -- | Bundschraube mit Druckfeder | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| -- | Kombimutter | M10-22H ZNS3 | 2 | 31106765451 | $1.05 | Shop at ECS Tuning | ||||
| -- | Schraube Aussentorx | M10X59-10.9 ZNS | 2 | 31106789333 | $0.90 | Shop at ECS Tuning | ||||
| -- | Linsenschraube | M10X22 | 6 | 07149148299 | Shop at ECS Tuning | |||||
| -- | Sechskantschraube mit Bund | M10X60 | 2 | 07119904161 | Shop at ECS Tuning | |||||
| -- | Bundmutter selbstsichernd | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| -- | Sechskantbundschraube | M14X1,5X95 10.9 | 2 | 07119906100 | Shop at ECS Tuning | |||||
