M Performance Parts for BMW 4 Series G82 M4 Coupé M4 (2024)

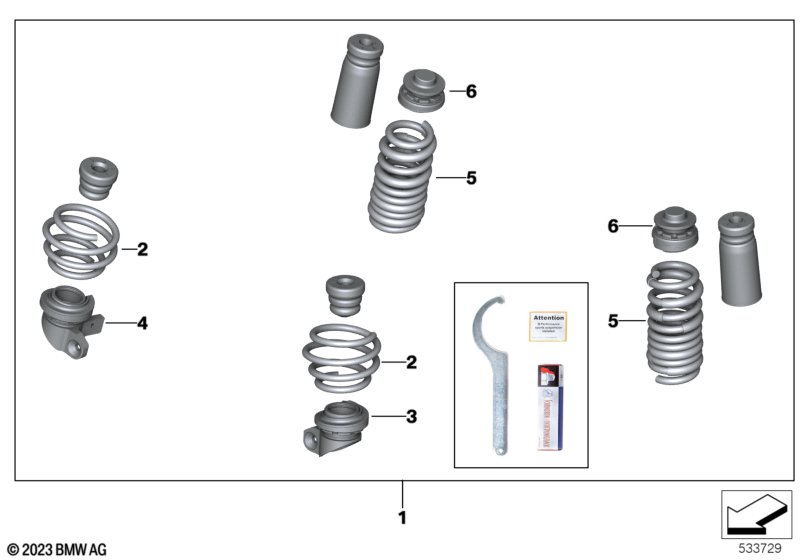

This M Performance Parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on race-track and not for use on public roads according to the relevant retrofitting regulation. Für Fahrzeuge mit Länderausführung Korea |
L802A=Nein |
||||||||
| Montageöl SN 2 405 829 wir benötigt | ||||||||||
| 01 | Nachrüstsatz Sportfahrwerk | M PERFORMANCE | 1 | 31305A2D979 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Mutter selbstsichernd | M14X1,5-05 ZNS3 | 2 | 34339806226 | Shop at ECS Tuning | |||||
| -- | Zwölfkantmutter | M14X1,5 ZNNIVSI | 2 | 33527850600 | Shop at ECS Tuning | |||||
| -- | Bundmutter selbstsichernd | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Sechskantbundmutter | M10-10 ZNS3 | 2 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
| -- | Kombimutter | M14X1,5-10ZNNIV | 6 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| -- | Sechsrundschraube | BM8X40 ZNS3 | 8 | 07148747784 | Shop at ECS Tuning | |||||
| -- | Sechskantschraube mit Scheibe | M10X80-U1-10.9 | 2 | 07119905418 | $3.12 | Shop at ECS Tuning | ||||
| -- | Sechskantschraube mit Scheibe | M12X125-10-ZNS3 | 2 | 07119905610 | $3.84 | Shop at ECS Tuning | ||||
| -- | Torxschraube | 10.9-ZNS3 | 6 | 07119907502 | Shop at ECS Tuning | |||||
| 02 | Schraubenfeder vorne | ERSATZ | 2 | 31335A3B692 | Shop at ECS Tuning | |||||
| 03 | Höhenverstellung vo. li. | ERSATZ | 1 | 31335A3B693 | Shop at ECS Tuning | |||||
| 04 | Höhenverstellung vo. re. | ERSATZ | 1 | 31335A3B694 | Shop at ECS Tuning | |||||
| 05 | Schraubenfeder hinten | ERSATZ | 2 | 33538845029 | Shop at ECS Tuning | |||||
| 06 | Höhenverstellung hinten | ERSATZ | 2 | 33538845030 | Shop at ECS Tuning | |||||
