Steuertrieb-Steuerkette for BMW 7 Series E32 750iL (1990)

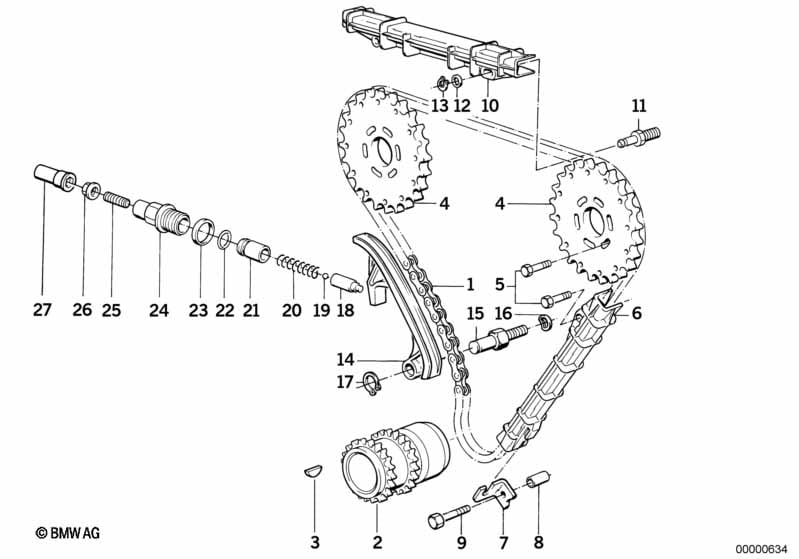

This Steuertrieb-Steuerkette technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steuerkette | 1 | 11311710155 | $130.96 | Shop at ECS Tuning | |||||
| 02 | Kettenrad | 1 | 11211710237 | $135.88 | Shop at ECS Tuning | |||||
| 03 | Scheibenfeder | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Kettenrad | 2 | 11311718673 | $37.14 | Shop at ECS Tuning | |||||
| 05 | Sechskantschraube mit Scheibe | M6X16-U1-8.8 | X | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Gleitschiene | 1 | 11311745998 | $16.11 | Shop at ECS Tuning | |||||
| 07 | Haltewinkel | 1 | 11311713884 | $2.85 | Shop at ECS Tuning | |||||
| 08 | Distanzbuchse | 1 | 08/1995 | 11311713843 | $1.41 | Entfallen | Shop at ECS Tuning | |||
| 09 | Bundschraube | M6X30 | 1 | 07119915300 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Gleitschiene | 1 | 11311710134 | $15.77 | Shop at ECS Tuning | |||||
| 14 | Spannschiene | 1 | 04/1990 | 11311725682 | $244.49 | SI 110890237 | Shop at ECS Tuning | |||
| 15 | Lagerbolzen | 1 | 11311715656 | $15.81 | Shop at ECS Tuning | |||||
| 16 | Federscheibe | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Sicherungsscheibe | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 18 | Kolben | 1 | 11311744347 | $33.04 | Shop at ECS Tuning | |||||
| 19 | Kugel | 5MM III | 1 | 07119986250 | $0.28 | Shop at ECS Tuning | ||||
| 20 | Druckfeder | 1 | 11311307053 | $5.40 | Shop at ECS Tuning | |||||
| 21 | Buchse | 1 | 11311718364 | $5.98 | Shop at ECS Tuning | |||||
| 22 | Dichtring | 13,0X2,0 | 1 | 11311702953 | $1.08 | Shop at ECS Tuning | ||||
| 23 | Dichtring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Hülse | 1 | 11311718363 | $11.07 | Shop at ECS Tuning | |||||
| 25 | Gewindestift | M10X35 | 1 | 07119904675 | Shop at ECS Tuning | |||||
| 26 | Sechskantmutter | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 27 | Schutzkappe | 1 | 11311720006 | $2.23 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- SI = Service-Information
