Zylinderkopf/Zylinderkopfhaube for BMW R45-R65LS..78-85 R65 (1979)

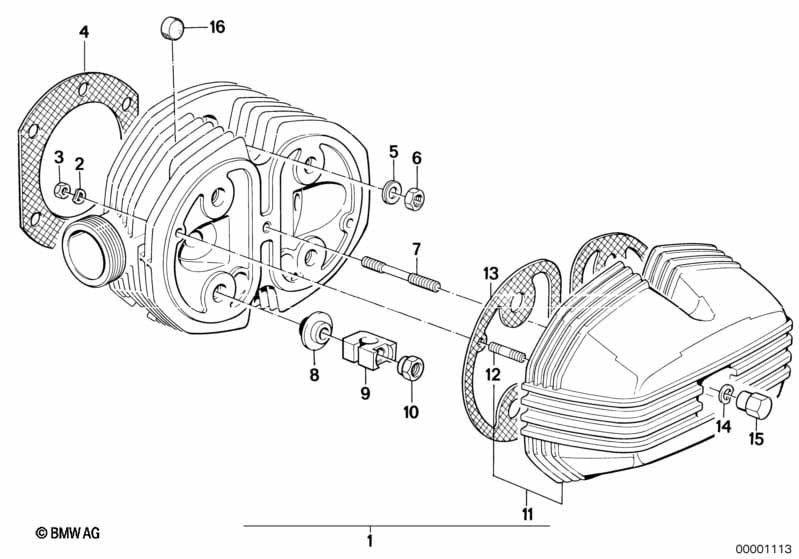

This Zylinderkopf/Zylinderkopfhaube technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zylinderkopf rechts | 1 | 09/1980 | 11121335224 | +Pfand | Shop at ECS Tuning | ||||
| 01 | Zylinderkopf links | 1 | 09/1980 | 11121335225 | +Pfand | Shop at ECS Tuning | ||||
| 02 | Federscheibe schwarz | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Unterlegscheibe | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Federscheibe | B6-ZNS3 | 8 | 07119904496 | $1.78 | Entfallen | Shop at ECS Tuning | |||
| 03 | Sechskantmutter | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Zylinderkopfdichtung asbestfrei | 2 | 11121338716 | $21.48 | +Pfand, SI 110978059 | Shop at ECS Tuning | ||||
| 05 | Unterlegscheibe | 3,5 ZNS | 4 | 11121336872 | $5.61 | Shop at ECS Tuning | ||||
| 06 | Sechskantmutter | 4 | 11111263903 | $1.33 | Shop at ECS Tuning | |||||
| 07 | Stiftschraube | M8X70 | 2 | 07129908142 | $0.41 | Shop at ECS Tuning | ||||
| 08 | Lagerung | 8 | 01/1985 | 11121261405 | $17.98 | Shop at ECS Tuning | ||||
| 09 | Kipphebelbock | 8 | 01/1985 | 11121258264 | $23.12 | Shop at ECS Tuning | ||||
| 11 | Zylinderkopfhaube silber rechts | 1 | 11121263761 | $88.25 | +Pfand | Shop at ECS Tuning | ||||
| 11 | Zylinderkopfhaube silber links | 1 | 11121263762 | $88.25 | +Pfand | Shop at ECS Tuning | ||||
| 12 | Stiftschraube | M6X40 | 4 | 07129904546 | Shop at ECS Tuning | |||||
| 13 | Dichtung astbestfrei | 2 | 11121338426 | $7.47 | Shop at ECS Tuning | |||||
| 14 | Federscheibe | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Hutmutter | M8-CR | 2 | 11121744330 | $4.26 | Shop at ECS Tuning | ||||
| 16 | Gummistopfen | X | 11121337818 | $2.03 | Shop at ECS Tuning |
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- Entfallen = nicht mehr lieferbar.
- SI = Service-Information
