Ölpumpe-Einzelteile for BMW R45-R65LS..78-85 R65 (1979)

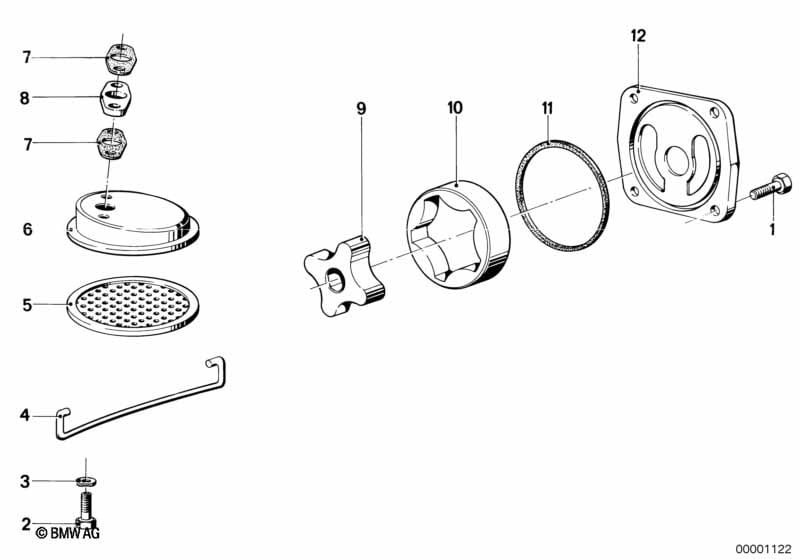

This Ölpumpe-Einzelteile technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sechskantschraube | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Sechskantschraube | M6X50 8.8 ZNS3 | 2 | 07119902993 | $0.59 | Shop at ECS Tuning | ||||
| 03 | Federscheibe schwarz | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Unterlegscheibe | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Federscheibe | B6-ZNS3 | 2 | 07119904496 | $1.78 | Entfallen | Shop at ECS Tuning | |||
| 04 | Drahtbügel | 1 | 11411252226 | $2.23 | Shop at ECS Tuning | |||||
| 05 | Lochblech | 1 | 11411337509 | $3.28 | Shop at ECS Tuning | |||||
| 06 | Saugkopf | 1 | 11411337536 | $13.44 | Shop at ECS Tuning | |||||
| 07 | Dichtung | 1 | 11411265258 | $3.41 | Shop at ECS Tuning | |||||
| 09 | Rotor innen | 1 | 11411335194 | $25.79 | +Pfand | Shop at ECS Tuning | ||||
| 10 | Rotor aussen | 1 | 11411253293 | $14.78 | +Pfand | Shop at ECS Tuning | ||||
| 11 | O-Ring | 62X2 | 1 | 11411335895 | $5.54 | Shop at ECS Tuning | ||||
| 12 | Ölpumpendeckel | 1 | 09/1980 | 11411260182 | $47.27 | +Pfand | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
