Ölfilter, Messtab for BMW R45-R65LS..78-85 R65 (1979)

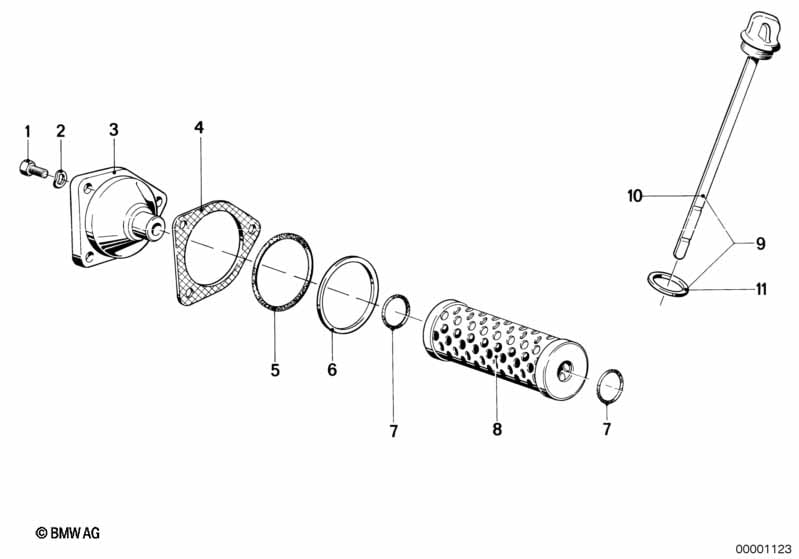

This Ölfilter, Messtab technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sechskantschraube mit Scheibe | M6X20 | 3 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 02 | Federscheibe schwarz | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Unterlegscheibe | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Ölfilterdeckel | 1 | 11421263345 | $9.84 | Shop at ECS Tuning | |||||
| 04 | Dichtung asbestfrei | 1 | 11421338600 | $1.67 | Shop at ECS Tuning | |||||
| 05 | O-Ring | 44X4 | 1 | 11421264160 | Shop at ECS Tuning | |||||
| 06 | Unterlegscheibe | 45.3X51.9X0.3 | 1 | 11421336895 | $1.33 | Shop at ECS Tuning | ||||
| 07 | O-Ring | 13X3.5 | 2 | 11421250285 | $4.09 | Shop at ECS Tuning | ||||
| 08 | Ölfilter | 1 | 11421337570 | $21.59 | Shop at ECS Tuning | |||||
| nicht passend zu | ||||||||||
| -- | Nachrüstsatz Ölkühler | X | 11421335396 | Entfallen, +Pfand | Shop at ECS Tuning | |||||
| 10 | Ölmessstab | 1 | 09/1980 | 11431337543 | $30.72 | Shop at ECS Tuning | ||||
| 11 | Dichtring | A26X31-AL | 1 | 08/1979 | 07119963418 | $0.25 | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
