Zylinder-Kurbelgehäuse/Anbauteile for BMW MINI R56 One (2008)

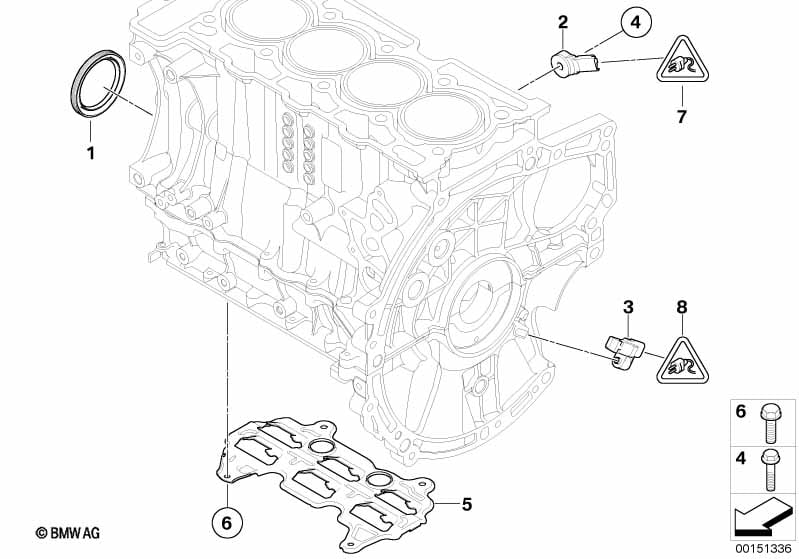

This Zylinder-Kurbelgehäuse/Anbauteile technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wellendichtring | 61X75X8 | 1 | 11117568264 | $17.67 | Shop at ECS Tuning | ||||
| 02 | Klopfsensor | 1 | 13627535067 | $53.52 | Shop at ECS Tuning | |||||
| 03 | Sensor Kurbelwelle | 1 | 13627561753 | $74.87 | Shop at ECS Tuning | |||||
| 04 | Schraube | 1 | 13627579016 | $1.05 | Shop at ECS Tuning | |||||
| 05 | Ölhobel | 1 | 11137579017 | Shop at ECS Tuning | ||||||
| 06 | Sechskantschraube mit Scheibe | M6X16 | 4 | 07147543919 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Rep.-Satz Buchsengehäuse | 3 POL. | 1 | 61132359997 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Einzelleiterabdichtung | 0.13-0.35MM² | 3 | 61138353705 | $0.27 | Shop at ECS Tuning | ||||
| -- | Buchsenkontakt MCON 1,2 ELA | 0,5-0,75MM² AG | 3 | 12527545858 | $0.50 | Shop at ECS Tuning | ||||
