Riementrieb-Schwingungsdämpfer for BMW MINI R56 One (2008)

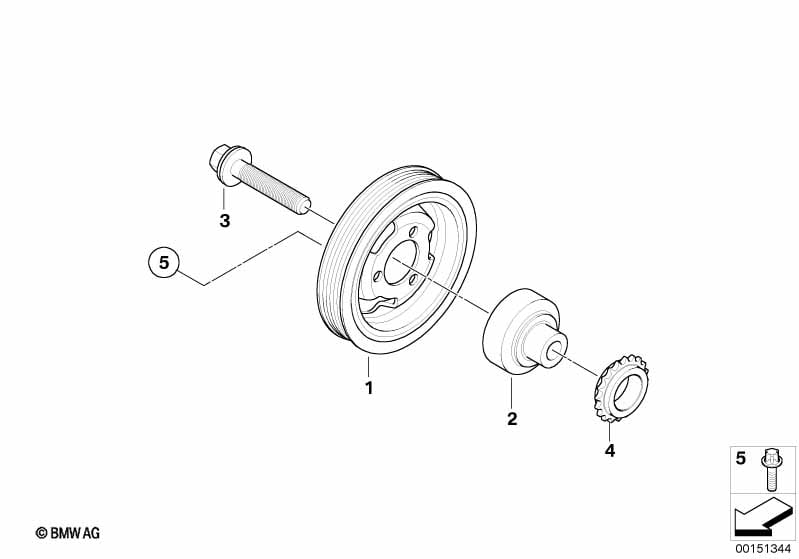

This Riementrieb-Schwingungsdämpfer technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Schwingungsdämpfer | 1 | 11237638551 | Shop at ECS Tuning | ||||||
| 02 | Nabe | 1 | 11237537697 | $61.18 | Shop at ECS Tuning | |||||
| Reparaturanleitung beachten | ||||||||||
| 03 | Sechskantschraube | M14X70 12.9 | 1 | 11217616164 | Shop at ECS Tuning | |||||
| 04 | Kettenrad | 1 | 11217588996 | $36.43 | Shop at ECS Tuning | |||||
| 05 | ASA-Schraube | M8X16 ZNS3 | 3 | 07119908222 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 One Riementrieb-Schwingungsdämpfer?
- This technical diagram illustrates the Riementrieb-Schwingungsdämpfer within the Motor group for the MINI R56 One produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Schwingungsdämpfer (Part #11237638551).
- Which models use the hardware listed in this Riementrieb-Schwingungsdämpfer?
- The hardware and components featured in the Riementrieb-Schwingungsdämpfer are specific to the MINI R56 One produced during 2008. These technical specifications ensure that parts like the Schwingungsdämpfer (11237638551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Riementrieb-Schwingungsdämpfer assembly?
- Each item in the Riementrieb-Schwingungsdämpfer corresponds to the numbered list below the illustration. For the MINI R56 One, you can identify the Schwingungsdämpfer by locating its position on the schematic, which then links to the official BMW part number 11237638551 for the Motor section.
