Riementrieb für Wasserpumpe/Generator for BMW MINI R56 One (2008)

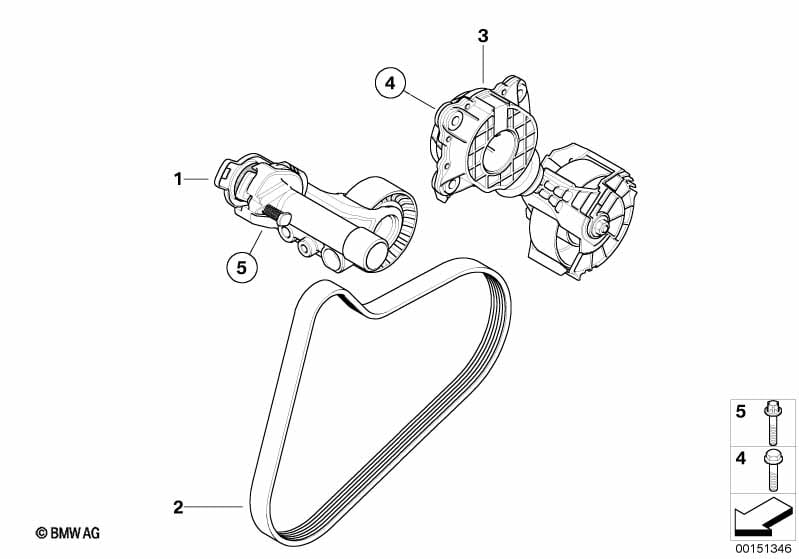

This Riementrieb für Wasserpumpe/Generator technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Klimaanlage oder Klimaautomatik |
S530A=Ja S534A=Ja |
|||||||||
| 01 | Riemenspanner mechanisch | 1 | 11287571015 | $101.95 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Klimaanlage und Klimaautomatik |
S530A=Nein S534A=Nein |
|||||||||
| 02 | Keilrippenriemen | 1 | 11287568073 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Klimaanlage oder Klimaautomatik |
S530A=Ja S534A=Ja |
|||||||||
| 02 | Keilrippenriemen | 6K X 905 | 1 | 04/2010 | 11287566789 | $30.16 | Shop at ECS Tuning | |||
| nur passend zu | ||||||||||
| -- | RP Klimakompressor | X | 04/2010 | 64522758145 | $902.65 | Entfallen | Shop at ECS Tuning | |||
| 03 | Reibrad | 1 | 11287598832 | Shop at ECS Tuning | ||||||
| nur in Verbindung mit | ||||||||||
| -- | Universal-Buchsengehäuse uncodiert | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| -- | Schutzkappe | 2-POL. | 1 | 12517812754 | Shop at ECS Tuning | |||||
| 04 | Sechskantschraube mit Scheibe | 3 | 11287562369 | $0.72 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Klimaanlage oder Klimaautomatik |
S530A=Ja S534A=Ja |
|||||||||
| 05 | ASA-Schraube | 2 | 11287560445 | $1.73 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
