Kurbeltrieb-Kurbelwelle mit Lagerschalen for BMW MINI R56 One (2008)

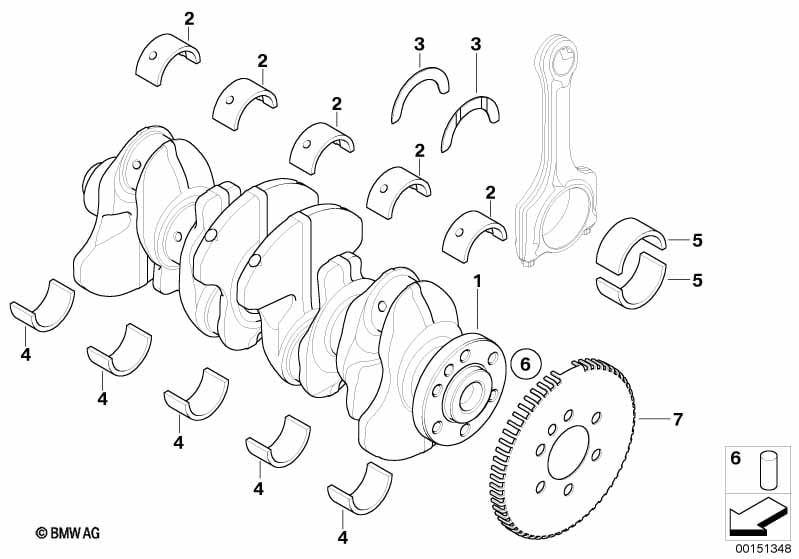

This Kurbeltrieb-Kurbelwelle mit Lagerschalen technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kurbelwelle | 1 | 11217534732 | Entfallen | Shop at ECS Tuning | |||||
| 02 | Lagerschale schwarz | 45,00MM(0) | 5 | 11217585452 | Shop at ECS Tuning | |||||
| 02 | Lagerschale grün | 45,00MM(0) | 5 | 11217585453 | Shop at ECS Tuning | |||||
| 02 | Lagerschale gelb | 45,00MM(0) | 5 | 11217585454 | Shop at ECS Tuning | |||||
| 02 | Lagerschale orange | 45,00MM(0) | 5 | 11217585455 | Shop at ECS Tuning | |||||
| 02 | Lagerschale braun | 45,00MM(0) | 5 | 11217605506 | Shop at ECS Tuning | |||||
| 03 | Führungsscheibe oben | 2 | 11217594889 | $24.24 | Shop at ECS Tuning | |||||
| 04 | Lagerschale schwarz | 45,00MM(0) | 5 | 11217585458 | Shop at ECS Tuning | |||||
| 04 | Lagerschale grün | 45,00MM(0) | 5 | 11217585459 | Shop at ECS Tuning | |||||
| 04 | Lagerschale gelb | 45,00MM(0) | 5 | 11217585460 | Shop at ECS Tuning | |||||
| 04 | Lagerschale orange | 45,00MM(0) | 5 | 11217585461 | Shop at ECS Tuning | |||||
| 04 | Lagerschale braun | 45,00MM(0) | 5 | 11217605502 | Shop at ECS Tuning | |||||
| 05 | Lagerschale | 40,00MM(0) | 8 | 11247588267 | Shop at ECS Tuning | |||||
| 06 | Zylinderstift | 8X15 | 1 | 11227542759 | $2.37 | Shop at ECS Tuning | ||||
| 07 | Impulsgeberrad | 1 | 11227634295 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
