Kurbeltrieb-Pleuelstange for BMW MINI R56 One (2008)

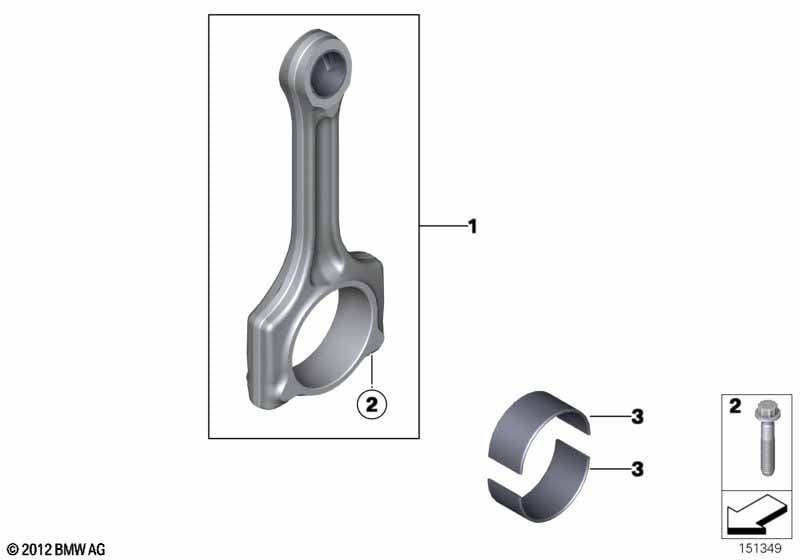

This Kurbeltrieb-Pleuelstange technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Satz Pleuelstange | L=144,69MM | 1 | 03/2019 | 11247621255 | Shop at ECS Tuning | ||||
| 01 | Satz Pleuelstange | L=144,69MM | 1 | 11249894655 | Entfallen | Shop at ECS Tuning | ||||
| Reparaturanleitung beachten! Nur passend zu Pleuel mit Kennzeichnung MDGU12/ MDGU32/ MDGU42 |
||||||||||
| 02 | Pleuelschraube | M7X37 | 8 | 03/2019 | 11247593922 | Shop at ECS Tuning | ||||
| 03 | Lagerschale | 40,00MM(0) | 8 | 11247588267 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
