Ventilsteuerung-Nockenwelle Auslass for BMW MINI R56 One (2008)

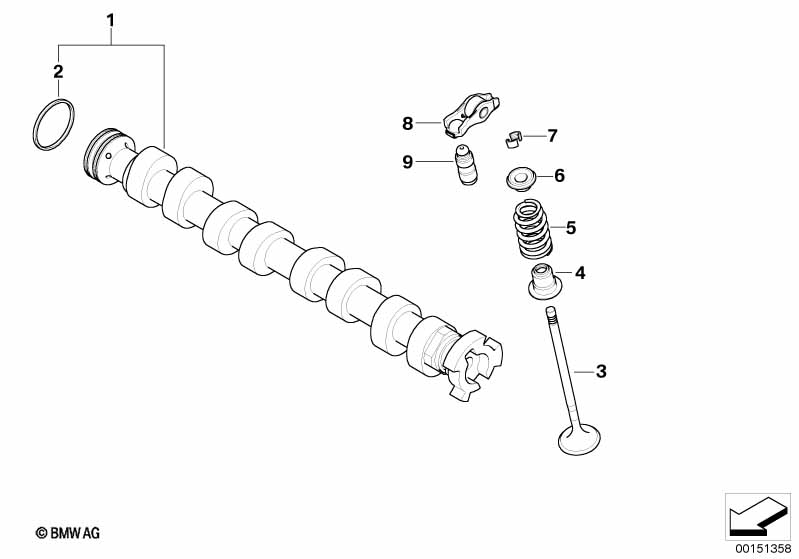

This Ventilsteuerung-Nockenwelle Auslass technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Auslassnockenwelle | 1 | 11317590251 | Shop at ECS Tuning | ||||||
| 02 | Rechteckring | 2 | 11317587757 | $5.62 | Shop at ECS Tuning | |||||
| 03 | Auslassventil | 25,0/4,96MM | 8 | 11347533885 | $33.04 | Shop at ECS Tuning | ||||
| 04 | Reparatursatz Ventilschaftabdichtung | 1 | 11340033950 | $82.00 | Shop at ECS Tuning | |||||
| 05 | Ventilfeder | 8 | 11347562716 | $7.88 | Shop at ECS Tuning | |||||
| 06 | Federteller oben | 8 | 11347539917 | $3.77 | Shop at ECS Tuning | |||||
| 07 | Ventilkegelstück | D=5 | 16 | 11341438142 | $1.08 | Shop at ECS Tuning | ||||
| 08 | Rollenschlepphebel | 8 | 11337559797 | $33.04 | Shop at ECS Tuning | |||||
| 09 | Ausgleichselement | 8 | 11337549632 | $21.42 | Shop at ECS Tuning |
