Zylinderkopfhaube for BMW MINI R56 One (2008)

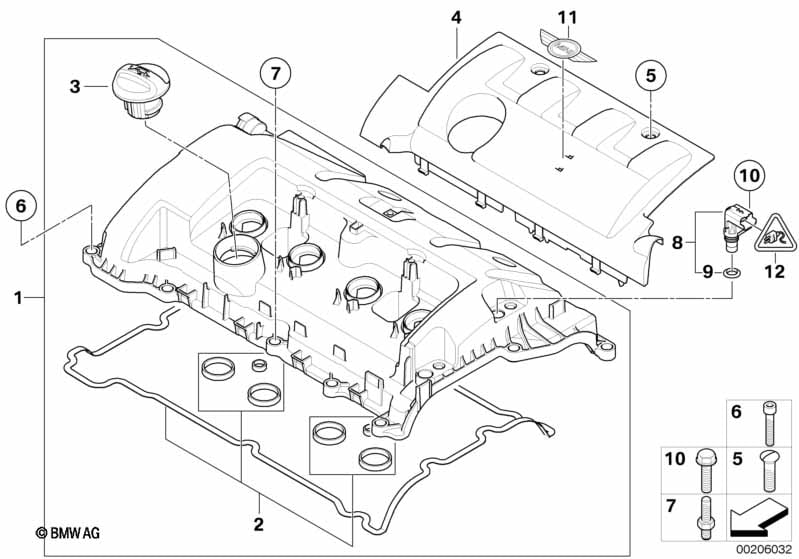

This Zylinderkopfhaube technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zylinderkopfhaube | 1 | 11127646554 | Shop at ECS Tuning | ||||||
| 02 | Satz Profildichtung | 1 | 11127567877 | $41.12 | Shop at ECS Tuning | |||||
| 03 | Verschlussdeckel Öleinfüllstutzen | 1 | 11127542116 | $17.16 | Shop at ECS Tuning | |||||
| 04 | Abdeckhaube | 1 | 11127585906 | $96.05 | Shop at ECS Tuning | |||||
| 05 | Linsenkopfschraube | 2 | 11127549986 | $0.65 | Shop at ECS Tuning | |||||
| 06 | Sechskantschraube | M6X30 | 12 | 11127587919 | $1.08 | Shop at ECS Tuning | ||||
| 07 | Stiftschraube | 1 | 11127559969 | $1.30 | Shop at ECS Tuning | |||||
| 08 | Nockenwellensensor | 2 | 13627588095 | Shop at ECS Tuning | ||||||
| 09 | O-Ring | 11,1X1,6 | 2 | 13627567572 | $3.11 | Shop at ECS Tuning | ||||
| 10 | Sechskantschraube | M6X18 | 2 | 11437527426 | $0.56 | Shop at ECS Tuning | ||||
| 12 | Buchsengehäuse | 3-POLIG | 1 | 12527590939 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt | 0,5-1,0 MM? | 1 | 12527555721 | $0.50 | Shop at ECS Tuning | ||||
