Zylinderkopf - elektr. Anbauteile for BMW MINI R56 One (2008)

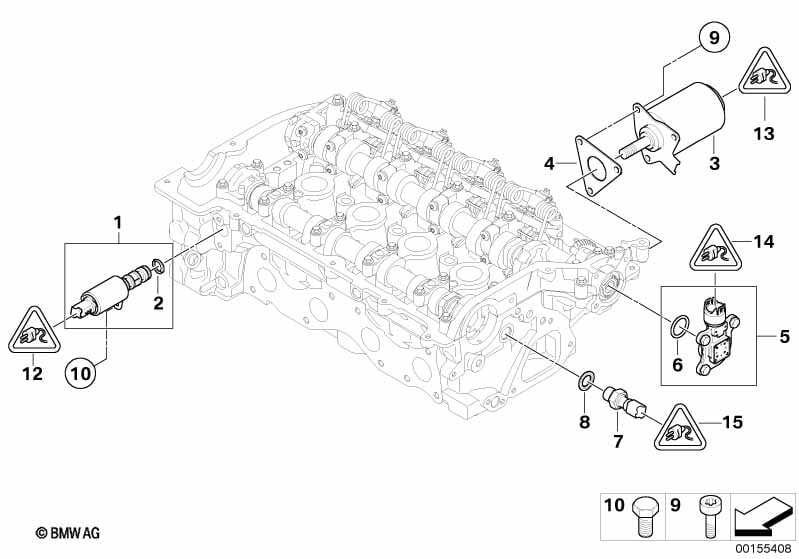

This Zylinderkopf - elektr. Anbauteile technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Magnetventil | 2 | 11368610388 | Shop at ECS Tuning | ||||||
| 02 | O-Ring | 14X1,78 | 2 | 11367534776 | $1.19 | Shop at ECS Tuning | ||||
| 03 | Stellmotor | 1 | 11377533905 | $253.07 | Shop at ECS Tuning | |||||
| 04 | Dichtung Metall | 1 | 11127560273 | $3.62 | Shop at ECS Tuning | |||||
| 05 | Exzenterwellensensor | 1 | 11377541677 | $367.58 | Shop at ECS Tuning | |||||
| 06 | O-Ring | 34,65X1,78 | 1 | 13627567161 | $2.48 | Shop at ECS Tuning | ||||
| 07 | Öldruckschalter | 1 | 12617568481 | $11.70 | Shop at ECS Tuning | |||||
| 08 | Dichtring | 1 | 12617546239 | $1.32 | Shop at ECS Tuning | |||||
| 09 | ISA-Schraube | M6X15 ZNNIV SI | 3 | 07129905385 | $1.50 | Shop at ECS Tuning | ||||
| 10 | Linsenkopfschraube | M6X16 | 2 | 11367605225 | Shop at ECS Tuning | |||||
| 12 | Buchsengehäuse 2-polig | SCHWARZ | 1 | 12527542849 | $2.53 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt | 0,5-1,0 MM? | 2 | 12527555721 | $0.50 | Shop at ECS Tuning | ||||
| 13 | Buchsengehäuse | 2 POL. | 1 | 12527503453 | $3.23 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt SLK 2,8 ELA | 4,0 MM? | 1 | 12527505636 | $0.50 | Shop at ECS Tuning | ||||
| -- | Einzelleiterabdichtung | 4MM² | 1 | 12527514562 | $0.57 | Shop at ECS Tuning | ||||
| 14 | Buchsengehäuse blau | 1 | 12527515464 | $6.70 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MLK 1,2 ELA | 0,35-0,5MM² AG | 1 | 61138722290 | Shop at ECS Tuning | |||||
| -- | Einzelleiterabdichtung | 0,22-1,0MM² | 1 | 12527503411 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Buchsengehäuse 2-polig | 1 | 12527542850 | $2.53 | Shop at ECS Tuning | |||||
