Motoraufhängung/Motordämpfer for BMW 7 Series E32 750iL (1990)

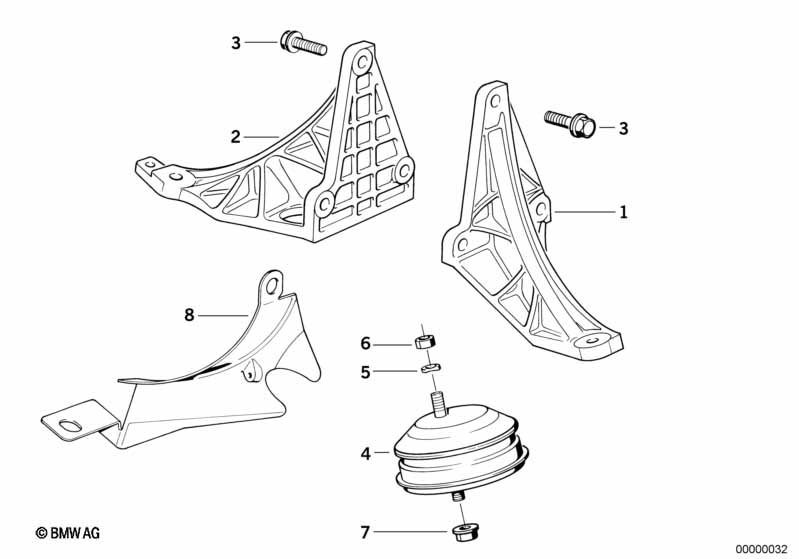

This Motoraufhängung/Motordämpfer technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tragbügel links | 1 | 11811132989 | $62.45 | Shop at ECS Tuning | |||||
| 02 | Tragbügel rechts | 1 | 11811132990 | $62.45 | Shop at ECS Tuning | |||||
| 03 | Sechskantschraube mit Scheibe | M10X35-U1 | 6 | 07119906140 | $1.27 | Shop at ECS Tuning | ||||
| 04 | Gummilager | 2 | 22116750820 | $111.03 | Shop at ECS Tuning | |||||
| 05 | Unterlegscheibe | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 06 | Sechskantmutter | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Sechskantmutter selbstsichernd | M10 | 2 | 32101133077 | $2.50 | Entfallen | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
