Kettenkastengehäuse unten for BMW 7 Series E32 750iL (1990)

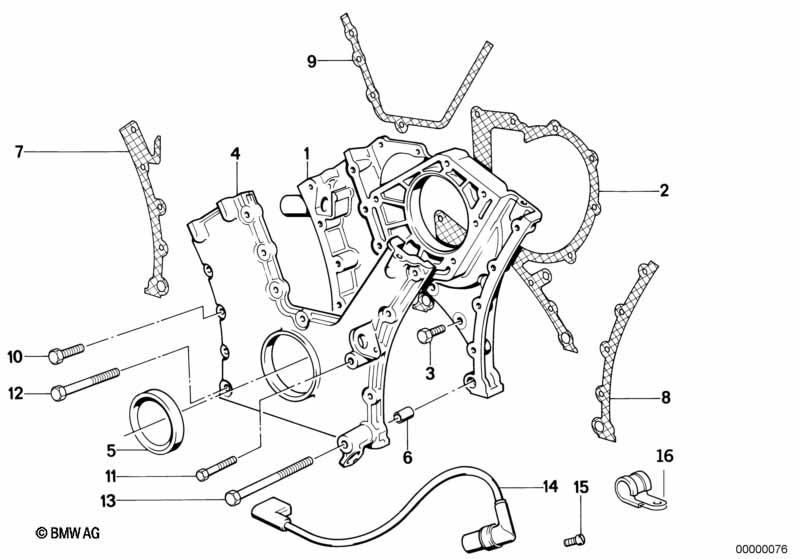

This Kettenkastengehäuse unten technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kettenkasten unten | 1 | 11141715513 | $215.52 | Shop at ECS Tuning | |||||
| 02 | Dichtung asbestfrei | 1 | 11141725756 | $10.46 | Shop at ECS Tuning | |||||
| 03 | Sechskantschraube mit Scheibe | M6X18-U1 | X | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Kettenkastendeckel unten | 1 | 11141713522 | $211.52 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Wellendichtring | 55X72X10 | 1 | 11141725994 | $29.38 | Shop at ECS Tuning | ||||
| 06 | Passhülse | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Dichtung asbestfrei | 1 | 11141725758 | $2.92 | Shop at ECS Tuning | |||||
| 08 | Dichtung asbestfrei | 1 | 11141725760 | $2.12 | Shop at ECS Tuning | |||||
| 09 | Dichtung asbestfrei | 1 | 11141725762 | $2.81 | Shop at ECS Tuning | |||||
| 10 | Sechskantschraube | M6X28-8.8-ZNS | X | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Unterlegscheibe | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Sechskantschraube | M6X65 | 1 | 07119912357 | $0.71 | Entfallen | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Unterlegscheibe | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Sechskantschraube | M8X75-8.8-ZNS3 | 1 | 07119906028 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Federscheibe | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Sechskantschraube | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Federscheibe | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Impulsgeber | 2 | 12141720291 | Shop at ECS Tuning | ||||||
| 15 | Zylinderschraube | M6X10-8.8 ZN | 2 | 07119919962 | $0.20 | Entfallen | Shop at ECS Tuning | |||
| 16 | Schelle | D=10MM | 1 | 12521720128 | $2.68 | Entfallen | Shop at ECS Tuning | |||
| 16 | Schelle | D=5MM | 1 | 12521720129 | $2.68 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
