Kettenkastengehäuse oben for BMW 7 Series E32 750iL (1990)

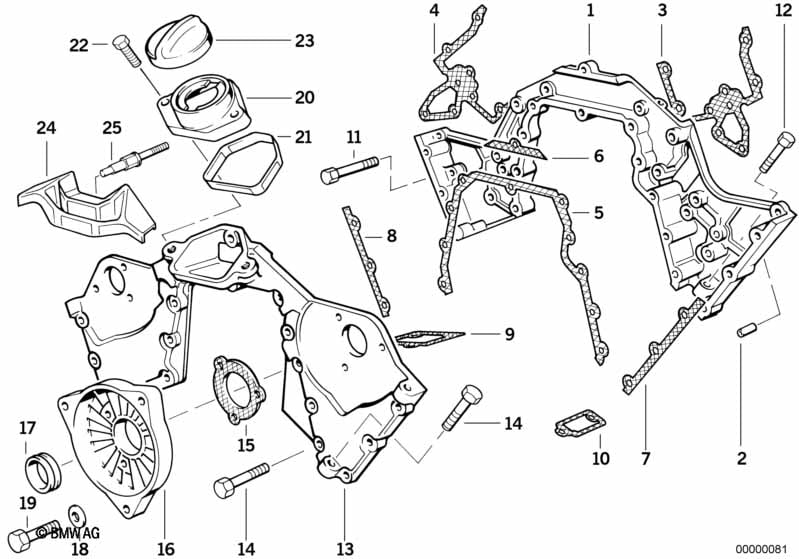

This Kettenkastengehäuse oben technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kettenkasten oben | 1 | 04/1990 | 08/1994 | 11141741318 | $215.52 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Sechskantschraube mit Scheibe | M6X40 | 2 | 04/1990 | 08/1994 | 11141731753 | $0.58 | Shop at ECS Tuning | ||
| 02 | Passhülse | D=8,5X9MM | 4 | 04/1990 | 11121726242 | $1.07 | Shop at ECS Tuning | |||
| 03 | Dichtung asbestfrei | ZYL.1-6 | 1 | 04/1990 | 11141725767 | $3.96 | Shop at ECS Tuning | |||
| 04 | Dichtung asbestfrei | ZYL.7-12 | 1 | 04/1990 | 11141725768 | $3.96 | Shop at ECS Tuning | |||
| 05 | Dichtung asbestfrei | 1 | 04/1990 | 11141725770 | $4.48 | Shop at ECS Tuning | ||||
| 06 | Dichtung asbestfrei | 1 | 04/1990 | 11141725778 | $1.75 | Shop at ECS Tuning | ||||
| 07 | Dichtung asbestfrei | ZYL.7-12 | 1 | 04/1990 | 11141725772 | $4.25 | Shop at ECS Tuning | |||
| 08 | Dichtung asbestfrei | ZYL.1-6 | 1 | 04/1990 | 11141725776 | $4.25 | Entfallen | Shop at ECS Tuning | ||
| nur passend zu Zylinder 1-6 | ||||||||||
| 09 | Dichtung Kettenkasten asbestfrei 1-Loch | 1 | 04/1990 | 11141725700 | $10.58 | Shop at ECS Tuning | ||||
| 09 | Dichtung Kettenkasten asbestfrei | 1 LOCH_1,5MM | 1 | 04/1990 | 11141733430 | $12.02 | Shop at ECS Tuning | |||
| 09 | Dichtung Kettenkasten asbestfrei 3-Loch | 1 | 04/1990 | 11141733452 | $28.71 | Entfallen | Shop at ECS Tuning | |||
| nur passend zu Zylinder 7-12 | ||||||||||
| 10 | Dichtung Kettenkasten asbestfrei 1-Loch | 1 | 04/1990 | 11141725703 | $9.73 | Entfallen | Shop at ECS Tuning | |||
| 10 | Dichtung Kettenkasten asbestfrei | 1 | 04/1990 | 11141733431 | $11.81 | Entfallen | Shop at ECS Tuning | |||
| 10 | Dichtung Kettenkasten asbestfrei 3-Loch | 1 | 04/1990 | 11141733453 | $26.04 | Entfallen | Shop at ECS Tuning | |||
| 11 | Sechskantschraube mit Scheibe | M6X18-U1 | 3 | 04/1990 | 01/1994 | 07119905399 | $0.36 | Shop at ECS Tuning | ||
| 11 | Sechskantschraube | M6X28-8.8-ZNS | X | 04/1990 | 07119913021 | $2.30 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Unterlegscheibe | 5.3-140 HV-ZNS | X | 04/1990 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 12 | Sechskantschraube | M6X28-Z3 | 2 | 04/1990 | 11141720091 | $1.15 | Shop at ECS Tuning | |||
| 12 | Sechskantschraube | M6X45-Z3 | 1 | 04/1990 | 11141720092 | $3.37 | Shop at ECS Tuning | |||
| 13 | Kettenkastendeckel oben | 1 | 04/1990 | 11141725802 | $215.52 | Shop at ECS Tuning | ||||
| 14 | Sechskantschraube | M6X28-8.8-ZNS | X | 04/1990 | 07119913021 | $2.30 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Unterlegscheibe | 5.3-140 HV-ZNS | X | 04/1990 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 15 | Dichtung | 2 | 04/1990 | 11141725780 | $3.67 | Shop at ECS Tuning | ||||
| 16 | Deckel für Zündverteiler | 2 | 04/1990 | 11141715722 | $60.72 | Shop at ECS Tuning | ||||
| 17 | Wellendichtring | 28X40X7 | 2 | 04/1990 | 11141709060 | Shop at ECS Tuning | ||||
| 18 | Dichtring | A6,5X11-CU | 6 | 04/1990 | 07119963044 | $0.20 | Shop at ECS Tuning | |||
| 19 | ISA-Schraube | M6X16-8.8-ZNS3 | 6 | 04/1990 | 07129905494 | $3.65 | Shop at ECS Tuning | |||
| 19 | Zylinderschraube | M6X16-8.8-ZNS | 6 | 04/1990 | 07119919713 | $1.20 | Shop at ECS Tuning | |||
| 20 | Öleinfüllrohr | 1 | 04/1990 | 11141733068 | $8.50 | Entfallen | Shop at ECS Tuning | |||
| 21 | Dichtring | 1 | 04/1990 | 11141729459 | $3.96 | Shop at ECS Tuning | ||||
| 22 | Sechskantschraube | 2 | 04/1990 | 11141729839 | $1.13 | Entfallen | Shop at ECS Tuning | |||
| 23 | Verschlussdeckel Öleinfüllstutzen | 1 | 04/1990 | 11127509328 | $7.78 | Shop at ECS Tuning | ||||
| 24 | Abdeckblech | 1 | 04/1990 | 12/1991 | 11141736687 | $30.12 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||

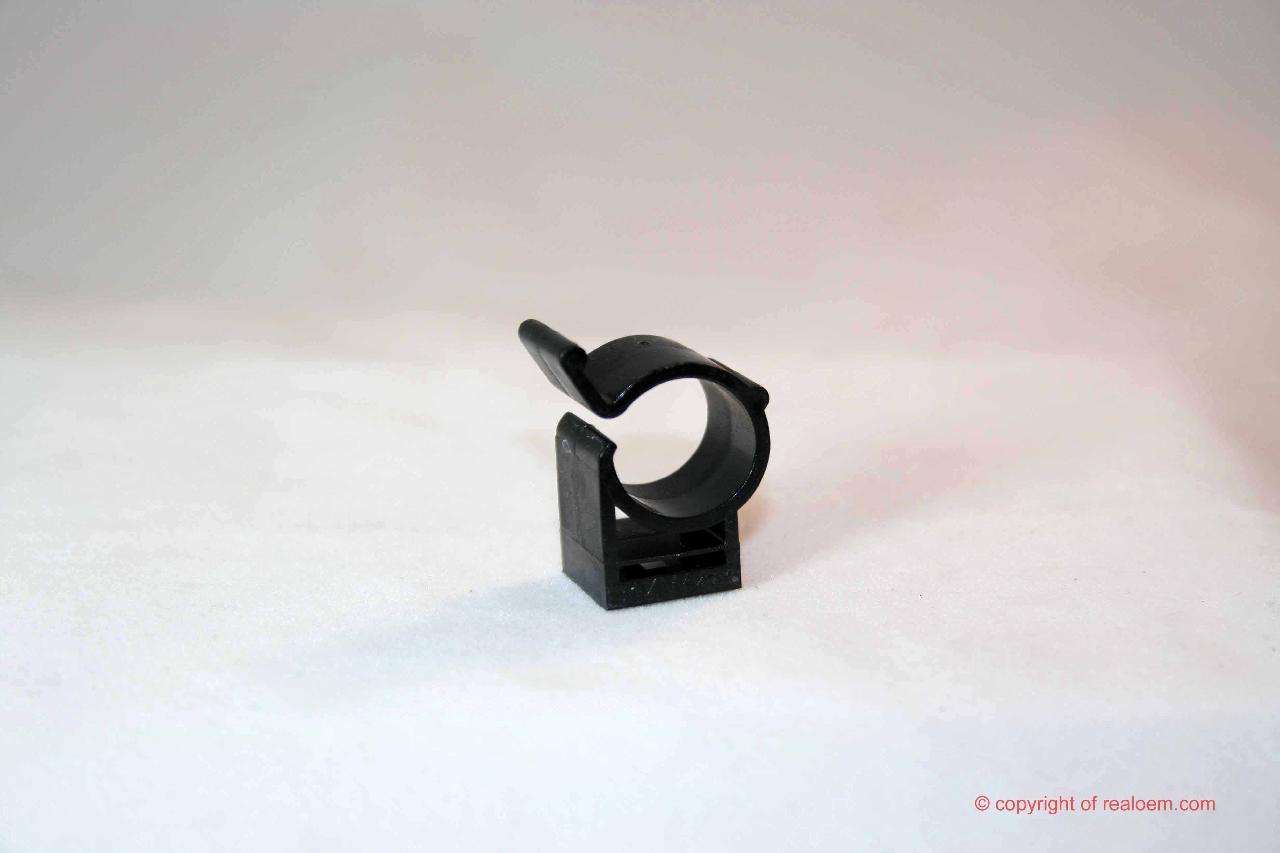

| -- | Halter Entlüftungsleitung | 1 | 04/1990 | 12/1991 | 16131177583 | $1.08 | Shop at ECS Tuning | |||
| 25 | Schraube | 1 | 04/1990 | 11141733510 | $9.23 | Shop at ECS Tuning | ||||
