Riementrieb-Schwingungsdämpfer for BMW 7 Series E32 750iL (1990)
This Riementrieb-Schwingungsdämpfer technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Schwingungsdämpfer | 1 | 11231729194 | $738.15 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Nabe | 1 | 11231710301 | $298.87 | Shop at ECS Tuning | |||||
| 03 | Passtift | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 04 | Kettenrad | 1 | 11211710237 | $135.88 | Shop at ECS Tuning | |||||

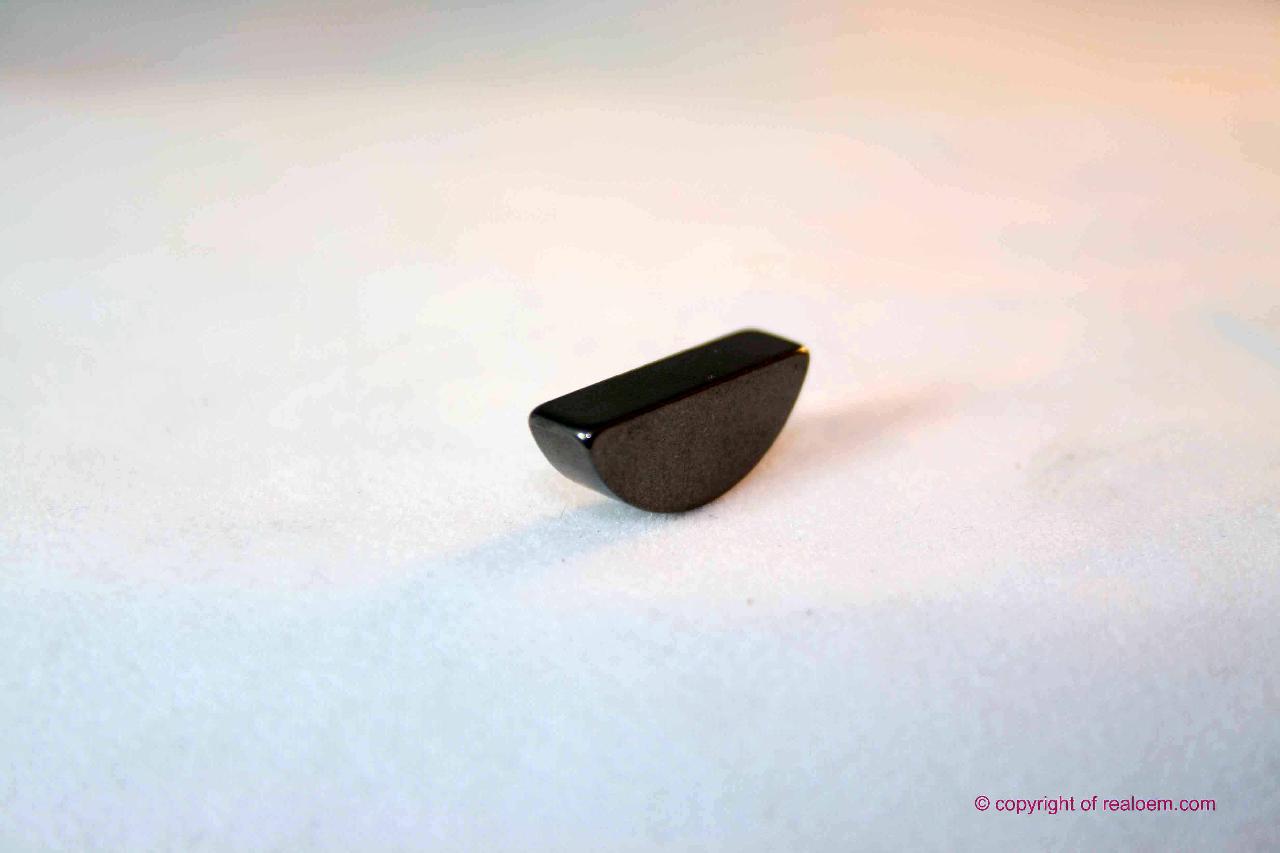

| 05 | Scheibenfeder | 5X7,5 | 1 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Sechskantschraube | M8X20-ZNNIV SI | 8 | 07119903039 | Shop at ECS Tuning | |||||
| 07 | Unterlegscheibe | 1 | 11231713619 | $9.32 | Shop at ECS Tuning | |||||
| 08 | Bundschraube | M18X1,5X65 | 1 | 11231736585 | $6.43 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Riementrieb-Schwingungsdämpfer?
- This technical diagram illustrates the Riementrieb-Schwingungsdämpfer within the Motor group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Schwingungsdämpfer (Part #11231729194).
- Which models use the hardware listed in this Riementrieb-Schwingungsdämpfer?
- The hardware and components featured in the Riementrieb-Schwingungsdämpfer are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the Schwingungsdämpfer (11231729194) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Riementrieb-Schwingungsdämpfer assembly?
- Each item in the Riementrieb-Schwingungsdämpfer corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Schwingungsdämpfer by locating its position on the schematic, which then links to the official BMW part number 11231729194 for the Motor section.
