Riementrieb für Generator/Flügelpumpe for BMW 7 Series E32 750iL (1990)

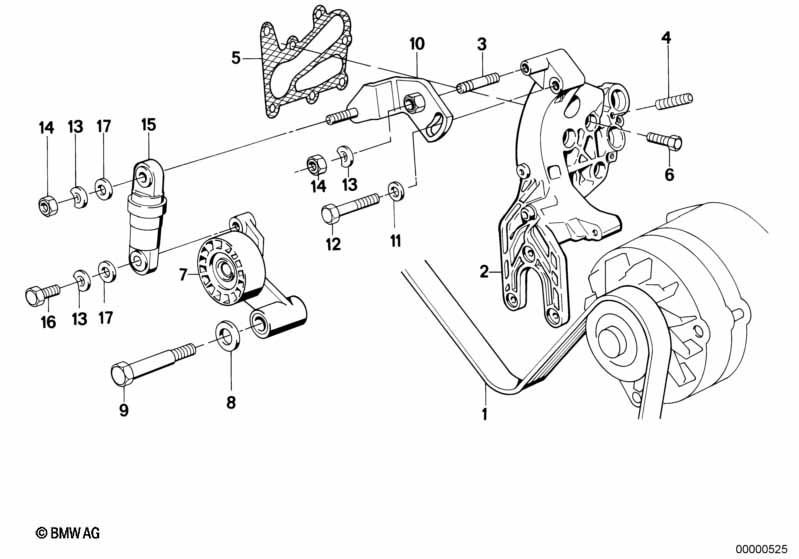

This Riementrieb für Generator/Flügelpumpe technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Keilrippenriemen | 6K X 1080 | 1 | 11281736719 | $33.88 | Shop at ECS Tuning | ||||
| 02 | Lagerbock | 1 | 12311715544 | $62.82 | Shop at ECS Tuning | |||||
| 03 | Stiftschraube | M8X45-8.8-ZNS3 | 1 | 07129903965 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Stiftschraube | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 05 | Dichtung asbestfrei | 1 | 12311742943 | $3.75 | Shop at ECS Tuning | |||||
| 06 | Sechskantschraube mit Scheibe | M8X35-Z3 | 8 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Spannrolle | 1 | 11281720039 | $138.08 | Shop at ECS Tuning | |||||
| 08 | Unterlegscheibe | 1 | 11281713970 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Passschraube | M8X60 | 1 | 07119905850 | $6.76 | Shop at ECS Tuning | ||||
| 10 | Verstellhebel | 1 | 11281715621 | $13.78 | Entfallen | Shop at ECS Tuning | ||||
| 11 | Unterlegscheibe | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Sechskantschraube | M8X50 | 1 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 13 | Federscheibe | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Sechskantmutter | M8-8-ZNS3 | 2 | 04/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Sechskantmutter | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Riemenspanner | 1 | 11281715626 | $101.95 | Shop at ECS Tuning | |||||
| 16 | Sechskantschraube | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Unterlegscheibe | 2 | 11281715625 | $0.22 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
