Riementrieb für Wasserpumpe/Klimakompr. for BMW 7 Series E32 750iL (1990)

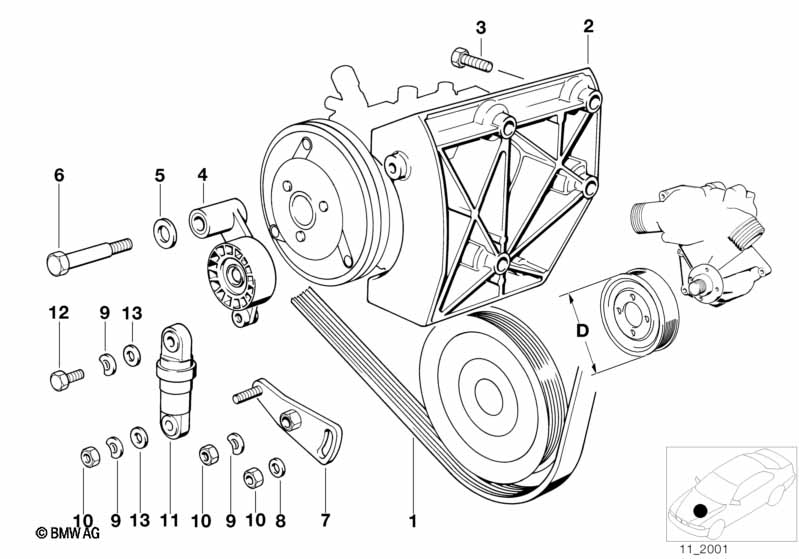

This Riementrieb für Wasserpumpe/Klimakompr. technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Keilrippenriemen | 5K X 1155 | 1 | 09/1989 | 11281733708 | $30.16 | Shop at ECS Tuning | |||
| nur passend zu | ||||||||||
| -- | Riemenscheibe | D=97MM | X | 09/1989 | 11511731905 | $186.83 | Shop at ECS Tuning | |||
| nur passend zu Zusatzgenerator | ||||||||||
| 01 | Keilrippenriemen | 5K X 1190 | 1 | 11281736972 | $30.16 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 01 | Keilrippenriemen | 5K X 1155 | 1 | 09/1989 | 11281733708 | $30.16 | Shop at ECS Tuning | |||
| nur passend zu | ||||||||||
| -- | Riemenscheibe | D=97MM | X | 09/1989 | 11511731905 | $186.83 | Shop at ECS Tuning | |||
| 02 | Lagerbock | 2 | 64551710471 | $76.13 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Passhülse | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| nur passend zu Zusatzgenerator | ||||||||||
| 02 | Lagerbock | 2 | 64551710471 | $76.13 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Passhülse | 2 | 64551729796 | $2.60 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Sechskantschraube mit Scheibe | M8X35-Z3 | 8 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 04 | Spannrolle | 1 | 11281720039 | $138.08 | Shop at ECS Tuning | |||||
| 05 | Unterlegscheibe | 1 | 11281713970 | $0.40 | Shop at ECS Tuning | |||||
| 06 | Passschraube | M8X60 | 1 | 07119905850 | $6.76 | Shop at ECS Tuning | ||||
| 07 | Verstellhebel | 1 | 11281715617 | $13.22 | Entfallen | Shop at ECS Tuning | ||||
| nur passend zu Zusatzgenerator | ||||||||||
| 07 | Verstellhebel | 1 | 11281729826 | $42.97 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Unterlegscheibe | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Federscheibe | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Sechskantmutter | M8-8-ZNS3 | 3 | 04/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 10 | Sechskantmutter | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Riemenspanner | 1 | 11281715626 | $101.95 | Shop at ECS Tuning | |||||
| 12 | Sechskantschraube mit Scheibe | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Unterlegscheibe | 1 | 11281715625 | $0.22 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
