Zylinderkopfhaube for BMW 7 Series E32 750iL (1990)

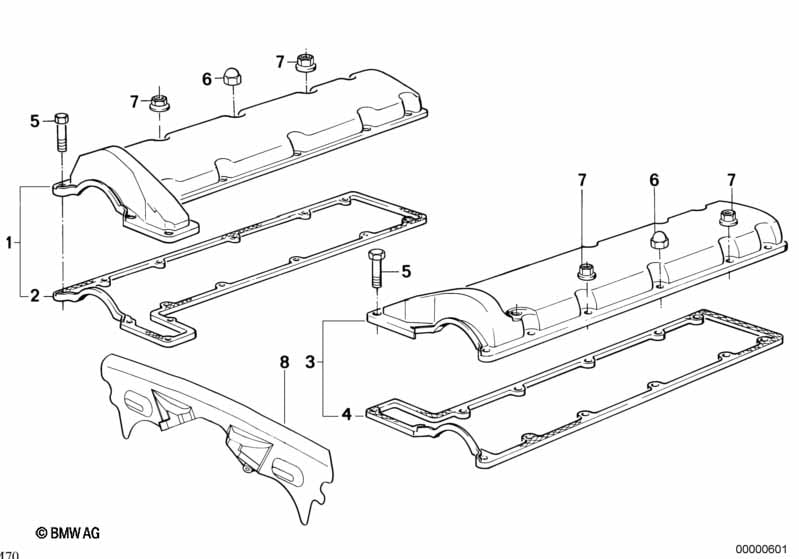

This Zylinderkopfhaube technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| nur passend zu Zylinder 1-6 | ||||||||||
| 01 | Zylinderkopfhaube rechts | 1 | 04/1990 | 11121725808 | $380.13 | Shop at ECS Tuning | ||||
| 02 | Dichtung rechts | 1 | 04/1990 | 11121725002 | $42.58 | Shop at ECS Tuning | ||||
| nur passend zu Zylinder 7-12 | ||||||||||
| 03 | Zylinderkopfhaube links | 1 | 04/1990 | 11121720337 | $380.13 | Shop at ECS Tuning | ||||
| 04 | Dichtung links | 1 | 04/1990 | 11121725003 | $42.58 | Shop at ECS Tuning | ||||

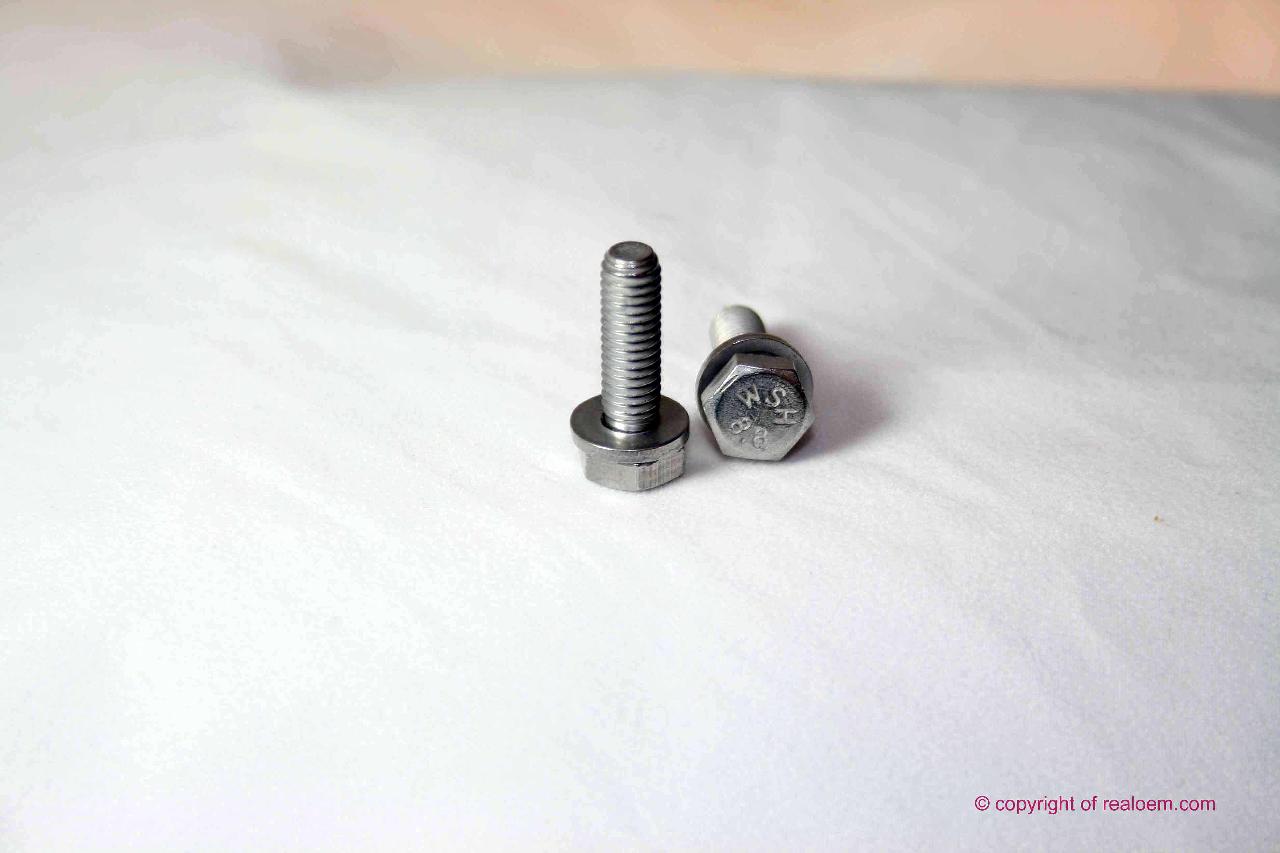

| 05 | Sechskantschraube mit Scheibe | M6X20 | 6 | 04/1990 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 05 | Sechskantschraube | M6X35-Z1 | 2 | 04/1990 | 11121731208 | $1.68 | Shop at ECS Tuning | |||
| 06 | Hutmutter | M6 | X | 04/1990 | 11617549043 | $3.23 | Shop at ECS Tuning | |||
| 07 | Sechskantmutter mit Scheibe | M6 ZNT | 4 | 04/1990 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
