Kurbelgehäuse-Entlüftung for BMW 7 Series E32 750iL (1990)

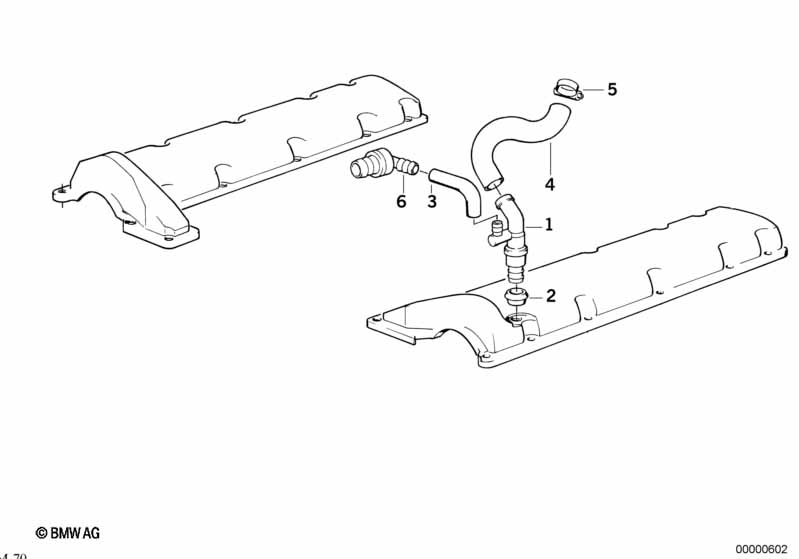

This Kurbelgehäuse-Entlüftung technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mengenbegrenzungsventil | ZYL.7-12 | 1 | 11151718642 | $25.04 | Shop at ECS Tuning | ||||
| 01 | Mengenbegrenzungsventil | ZYL.1-6 | 1 | 11151718713 | $25.04 | Shop at ECS Tuning | ||||
| 02 | Adapter | 2 | 11151715844 | $5.33 | Shop at ECS Tuning | |||||
| 03 | Entlüftungsschlauch | ZYL.1-6 | 1 | 11151720390 | $11.09 | Shop at ECS Tuning | ||||
| 03 | Entlüftungsschlauch | ZYL.7-12 | 1 | 11151720391 | $9.96 | Shop at ECS Tuning | ||||
| 04 | Entlüftungsschlauch | ZYL.1-6 | 1 | 11151720392 | $10.63 | Shop at ECS Tuning | ||||
| 04 | Entlüftungsschlauch | ZYL.7-12 | 1 | 11151720393 | $9.96 | Shop at ECS Tuning | ||||
| 05 | Schlauchschelle | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Rückschlagventil | 2 | 11151720131 | $11.15 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Kurbelgehäuse-Entlüftung?
- This technical diagram illustrates the Kurbelgehäuse-Entlüftung within the Motor group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Mengenbegrenzungsventil (Part #11151718642).
- Which models use the hardware listed in this Kurbelgehäuse-Entlüftung?
- The hardware and components featured in the Kurbelgehäuse-Entlüftung are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the Mengenbegrenzungsventil (11151718642) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kurbelgehäuse-Entlüftung assembly?
- Each item in the Kurbelgehäuse-Entlüftung corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Mengenbegrenzungsventil by locating its position on the schematic, which then links to the official BMW part number 11151718642 for the Motor section.
