Zylinder-Kurbelgehäuse for BMW 7 Series E32 750iL (1990)

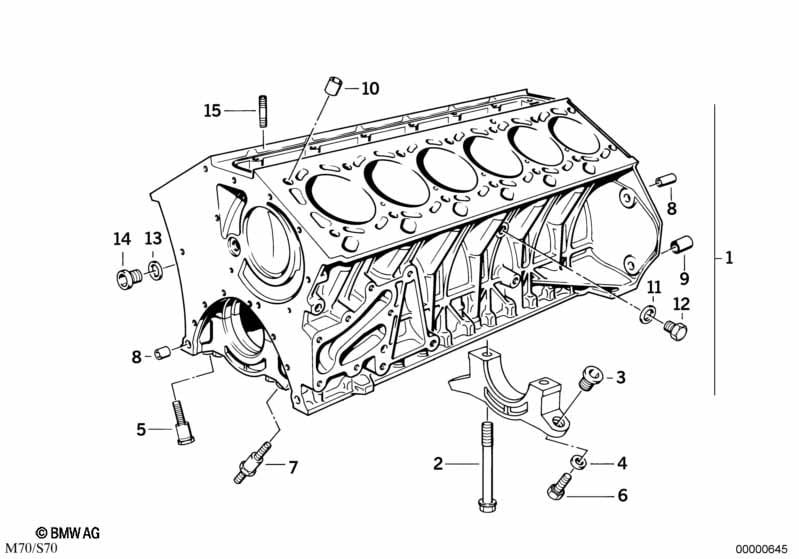

This Zylinder-Kurbelgehäuse technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zylinder-Kurbelgehäuse mit Kolben | 1 | 11111715602 | $9572.09 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Sechskantschraube | M10X100 | X | 11111710282 | $7.30 | Shop at ECS Tuning | ||||
| 03 | Distanzbuchse | X | 11111710132 | $5.27 | Shop at ECS Tuning | |||||
| 04 | Unterlegscheibe | X | 11111710133 | $0.92 | Shop at ECS Tuning | |||||
| 05 | Schraube | 1 | 11111710367 | $3.91 | Shop at ECS Tuning | |||||
| 06 | Sechskantschraube | M8X35 | X | 07119913673 | $0.62 | Entfallen | Shop at ECS Tuning | |||
| 07 | Distanzstück | 2 | 11111710368 | $4.32 | Shop at ECS Tuning | |||||
| 08 | Passhülse | D=10,5MM | 8 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Passhülse | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 10 | Passhülse | D=12,5MM | 4 | 11121726241 | $1.62 | Shop at ECS Tuning | ||||
| 11 | Dichtring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Verschlussschraube | M14X1,5-ZNNIV | 2 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 13 | Dichtring | A18X22-AL | 2 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 14 | Verschlussschraube | M18X1,5-ZNNIV | 2 | 07119905428 | $11.47 | Shop at ECS Tuning | ||||
| 15 | Stiftschraube | M6X30-ZNNIV SI | 2 | 07129904544 | $1.42 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
