Zylinder-Kurbelgehäuse/Anbauteile for BMW 7 Series E32 750iL (1990)

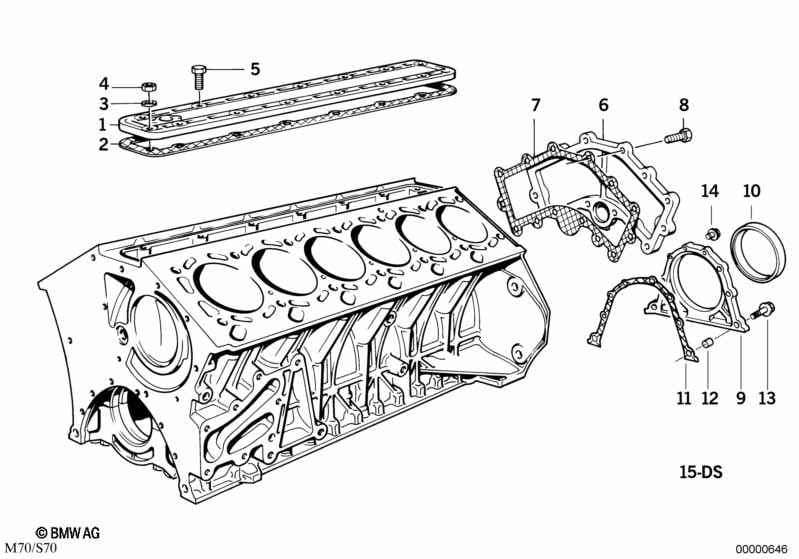

This Zylinder-Kurbelgehäuse/Anbauteile technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Abschlussdeckel | 1 | 11141715642 | $708.04 | Shop at ECS Tuning | |||||
| nur passend zu Kühlmittel-Vorwärmgerät |
||||||||||
| 01 | Abschlussdeckel | 1 | 11141715837 | Shop at ECS Tuning | ||||||
| 02 | Dichtung asbestfrei | 1 | 11141736959 | $25.13 | SI 170190201 | Shop at ECS Tuning | ||||
| 03 | Federscheibe | B6-ZNS3 | 2 | 07119904496 | $1.78 | Entfallen | Shop at ECS Tuning | |||
| 03 | Federscheibe schwarz | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Sechskantmutter | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Sechskantschraube | M6X28-8.8-ZNS | X | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Unterlegscheibe | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Abschlussdeckel | 1 | 11141736975 | $54.10 | Shop at ECS Tuning | |||||
| 07 | Dichtung asbestfrei | 1 | 11141733922 | $7.81 | Shop at ECS Tuning | |||||
| 08 | Sechskantschraube mit Scheibe | M6X18-U1 | X | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Abschlussdeckel | 1 | 11141288972 | $54.10 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Wellendichtring | 100X125X13 | 1 | 11141710247 | $64.06 | Shop at ECS Tuning | ||||
| 11 | Dichtung asbestfrei | 1 | 11141288973 | $2.81 | Shop at ECS Tuning | |||||
| 12 | Passhülse | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 13 | Sechskantschraube mit Scheibe | M8X35-Z3 | 2 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Sechskantschraube mit Scheibe | M6X25-ZNNIV SI | 6 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 15 | Dichtungssatz Kurbelgehäuse asbestfrei | 1 | 11119059235 | $267.70 | Entfallen | Shop at ECS Tuning | ||||
Ergänzungen
- SI = Service-Information
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Zylinder-Kurbelgehäuse/Anbauteile?
- This technical diagram illustrates the Zylinder-Kurbelgehäuse/Anbauteile within the Motor group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Abschlussdeckel (Part #11141715642).
- Which models use the hardware listed in this Zylinder-Kurbelgehäuse/Anbauteile?
- The hardware and components featured in the Zylinder-Kurbelgehäuse/Anbauteile are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the Abschlussdeckel (11141715642) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zylinder-Kurbelgehäuse/Anbauteile assembly?
- Each item in the Zylinder-Kurbelgehäuse/Anbauteile corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Abschlussdeckel by locating its position on the schematic, which then links to the official BMW part number 11141715642 for the Motor section.
