Kurbeltrieb-Kolben for BMW 7 Series E32 750iL (1990)

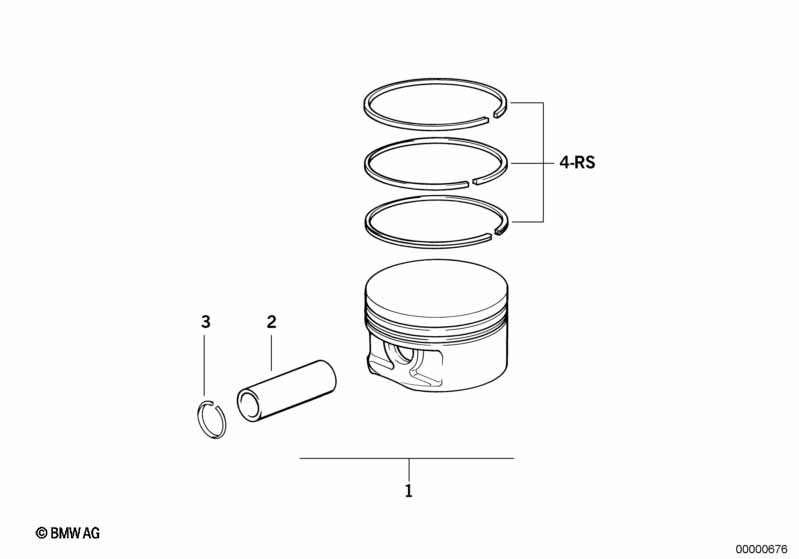

This Kurbeltrieb-Kolben technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| nur passend zu Zylinder 7-12 | ||||||||||
| 01 | Kolben links "A" | 84,000MM(0) | 6 | 11251747346 | $289.04 | Shop at ECS Tuning | ||||
| 01 | Kolben links "B" | 84,011MM(0) | 6 | 11251747347 | $276.77 | Entfallen | Shop at ECS Tuning | |||
| 01 | Kolben links "A" | 84,080MM(00) | 6 | 11251747348 | $276.77 | Entfallen | Shop at ECS Tuning | |||
| 01 | Kolben links "B" | 84,091MM(00) | 6 | 11251747349 | $356.04 | Shop at ECS Tuning | ||||
| 01 | Kolben links "A" | 84,250MM(+0,25) | 6 | 11251747350 | $276.77 | Entfallen | Shop at ECS Tuning | |||
| 01 | Kolben links "B" | 84.261MM(+0,25) | 6 | 11251747351 | $276.77 | Entfallen | Shop at ECS Tuning | |||
| nur passend zu Zylinder 1-6 | ||||||||||
| 01 | Kolben rechts "A" | 84,000MM(0) | 6 | 11251747337 | $356.04 | Shop at ECS Tuning | ||||
| 01 | Kolben rechts "B" | 84,011MM(0) | 6 | 11251747338 | $356.04 | Entfallen | Shop at ECS Tuning | |||
| 01 | Kolben rechts "A" | 84,080MM(00) | 6 | 11251747339 | $276.77 | Entfallen | Shop at ECS Tuning | |||
| 01 | Kolben rechts "B" | 84,091MM(00) | 6 | 11251747340 | $356.04 | Shop at ECS Tuning | ||||
| 01 | Kolben rechts "A" | 84,250MM(+0,25) | 6 | 11251747341 | $356.04 | Shop at ECS Tuning | ||||
| 01 | Kolben rechts "B" | 84,261MM(+0,25) | 6 | 11251747342 | $276.77 | Entfallen | Shop at ECS Tuning | |||
| 03 | Sprengring | C22X1.5 | 24 | 07119934460 | $0.35 | Shop at ECS Tuning | ||||
| 04 | Reparatursatz Kolbenringe-Alusil | (0) | 12 | 09/1992 | 11251718708 | $112.81 | Entfallen | Shop at ECS Tuning | ||
| 04 | Reparatursatz Kolbenringe-Alusil | (00) | 12 | 09/1992 | 11251718709 | $112.81 | Shop at ECS Tuning | |||
| 04 | Reparatursatz Kolbenringe-Alusil | (+0,25) | 12 | 11251747755 | $86.77 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
