Schwungrad Automatik for BMW 7 Series E32 750iL (1990)

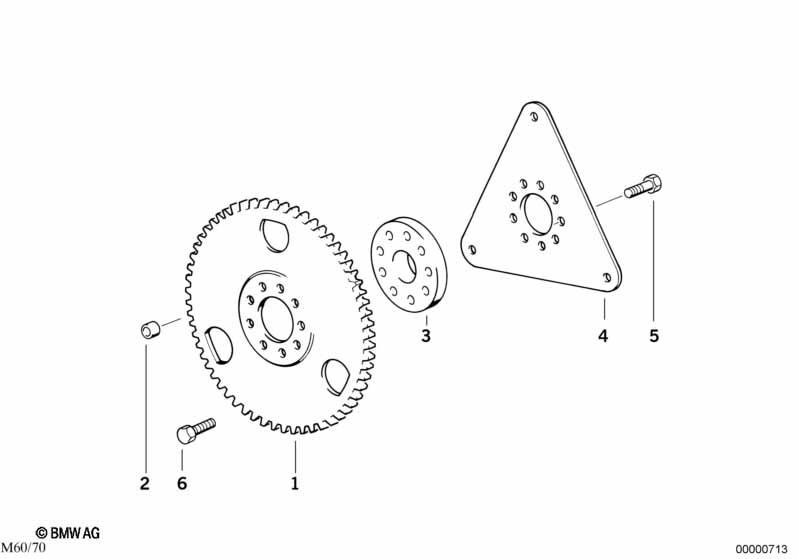

This Schwungrad Automatik technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Schwungrad | 1 | 03/1991 | 11221715646 | $527.10 | Shop at ECS Tuning | ||||
| 02 | Passhülse | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Distanzscheibe | 1 | 03/1991 | 11221718559 | $109.17 | Entfallen | Shop at ECS Tuning | |||
| 04 | Mitnehmerscheibe | 1 | 24401215815 | $69.62 | Shop at ECS Tuning | |||||

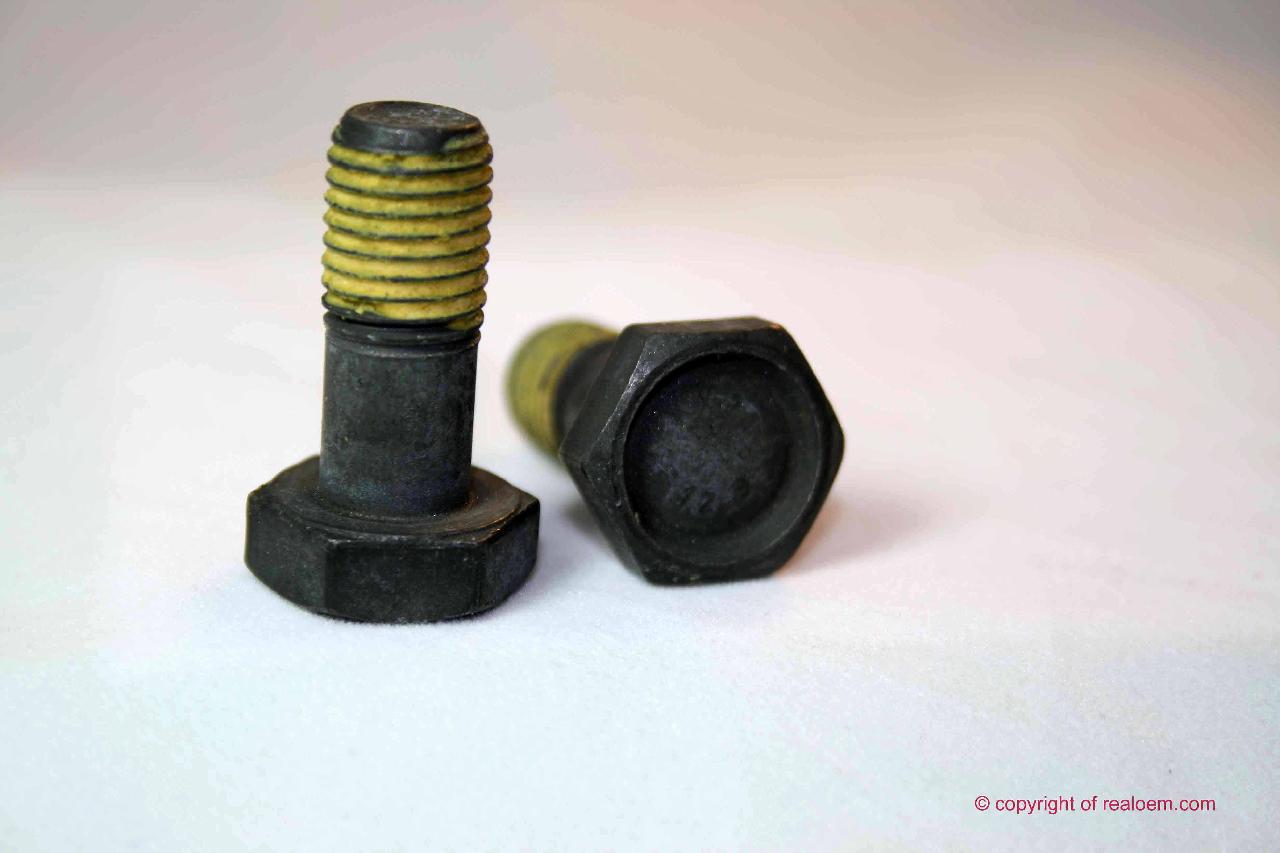

| 05 | Sechskantschraube | M12X1,5X28 | 9 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 06 | Sechskantschraube | M10X17,5 | 3 | 24001421067 | $0.75 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
