Zylinderkopf for BMW 7 Series E32 750iL (1990)

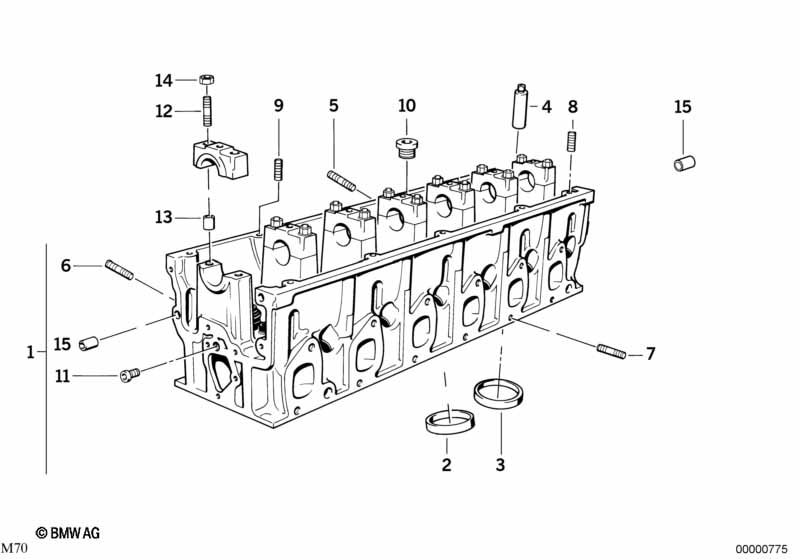

This Zylinderkopf technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zylinderkopf | 2 | 04/1990 | 11121733052 | $3936.32 | Entfallen, +Pfand | Shop at ECS Tuning | |||
| 02 | Ventilsitzring Einlass | 43,55MM(+0,4) | X | 11121719784 | $13.16 | Entfallen | Shop at ECS Tuning | |||
| 03 | Ventilsitzring Auslass | 38,05MM(+0,4) | X | 04/1990 | 11121715253 | $16.40 | Shop at ECS Tuning | |||
| 04 | Ventilführung | 12,7MM(+0,2) | X | 11121709860 | Entfallen, SI 110288843 | Shop at ECS Tuning | ||||
| 05 | Stiftschraube | M8X28 | X | 07129908147 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Stiftschraube | M8X40 | 4 | 07129903964 | Shop at ECS Tuning | |||||
| 07 | Stiftschraube | M8X50 10.9 | X | 07119908168 | $0.69 | Shop at ECS Tuning | ||||
| 08 | Stiftschraube | M6X28-ZN | X | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Stiftschraube | M6X35-ZNS3 | 4 | 07129903886 | Shop at ECS Tuning | |||||
| 10 | Verschlussschraube | M18X1,5 | 4 | 07119919017 | Shop at ECS Tuning | |||||
| 11 | Verschlussschraube | M10X1-8.8-ZNNIV | 4 | 11127539543 | $2.12 | Shop at ECS Tuning | ||||
| 12 | Stiftschraube | M7X55-10.9-PHR | X | 07129908115 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Passhülse | D=8,3MM | X | 11121715657 | $1.25 | Shop at ECS Tuning | ||||
| 14 | Flanschmutter | M7 | X | 11617573839 | $0.33 | Shop at ECS Tuning | ||||
| 15 | Passhülse | D=8,5X9MM | 8 | 11121726242 | $1.07 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- SI = Service-Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iL Zylinderkopf?
- This technical diagram illustrates the Zylinderkopf within the Motor group for the 7 Series E32 750iL produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Zylinderkopf (Part #11121733052).
- Which models use the hardware listed in this Zylinderkopf?
- The hardware and components featured in the Zylinderkopf are specific to the 7 Series E32 750iL produced during 1990. These technical specifications ensure that parts like the Zylinderkopf (11121733052) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zylinderkopf assembly?
- Each item in the Zylinderkopf corresponds to the numbered list below the illustration. For the 7 Series E32 750iL, you can identify the Zylinderkopf by locating its position on the schematic, which then links to the official BMW part number 11121733052 for the Motor section.
